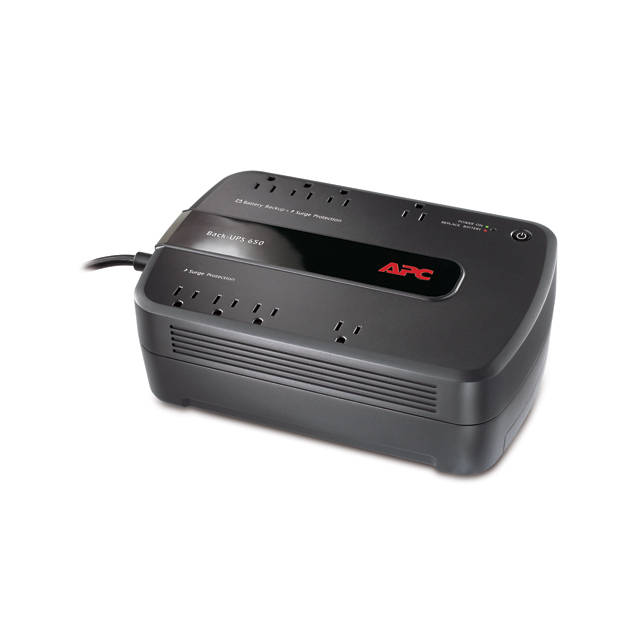

APC BACK-UPS BE650G1 8-Outlet 650VA 390W UPS System

Specifications

• Mfr Part Number: BE650G1
• Output
• Output Power Capacity: 390 Watts / 650 VA
• Nominal Output Voltage: 120V
• Output Frequency (sync to mains): 60 Hz
• Waveform Type: Stepped approximation to a sinewave
• Output Connections
• 4x NEMA 5-15R (Battery Backup)
• 4x NEMA 5-15R (Surge Protection)
• Input
• Nominal Input Voltage: 120V
• Input Frequency: 50/60 Hz
• Input Connections: NEMA 5-15P
• Cord Length: 1.52 meters
• Input voltage range for main operations: 90 – 140V
• Maximum Input Current: 12A
• Batteries & Runtime
• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte – leakproof
• Typical recharge time: 24 hour(s)
• Replacement battery cartridge: RBC17
• RBC Quantity: 1
• Typical Backup Time at Half Load: 12 minutes (195 Watts)
• Typical Backup Time at Full Load: 3 minutes (390 Watts)
• Communications & Management
• Interface Port(s): USB
• Control panel: LED status display with On Line; On Battery; Replace Battery and Building Wiring Fault
• Audible Alarm: Alarm when on battery; distinctive low battery alarm
• Surge Protection and Filtering
• Surge energy rating: 340 Joules
• Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through; zero clamping response time; meets UL 1449
• Data Line Protection: Network line – 10/100 Base-T Ethernet (RJ-45 connector)
• Regulatory Approvals: CSA C22.2 No. 107.1, FCC Part 15 Class B, FCC Part 68, NOM, TUV-C, UL 1778
• Color: Black
• Dimension (WxDxH): 180.0 x 284.0 x 86.0 mm
• Weight: 6.2 kg
