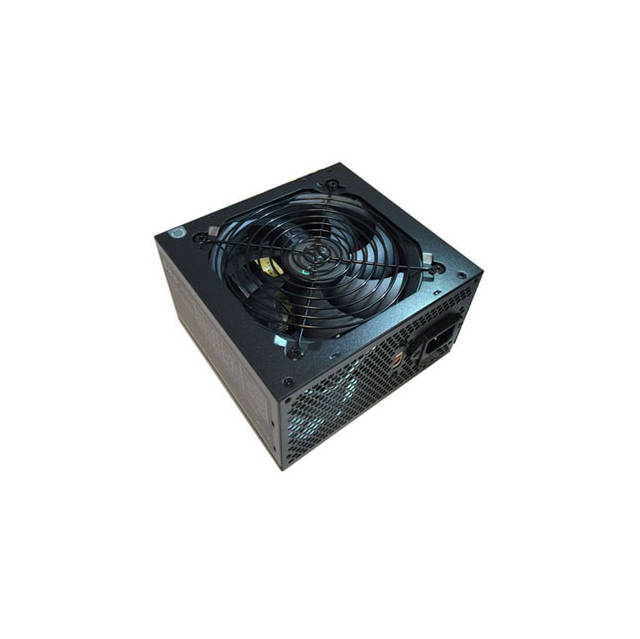

Apevia ATX-VN500W 500W ATX12V Power Supply

Name: Apevia ATX-VN500W 500W ATX12V Power Supply
Brand: Apevia
SKU: KOAH-ATX-VN500W
Availability: InStock

Original price was: $39.66.Current price is: $30.59.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

9 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-ATX-VN500W Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: ATX-VN500W
Features:
- 500W Power with 12cm black fan
- High quality components and housing
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- Low noise auto-thermally control 120mm fan
Maximum Power: 500 W
Input:
- Voltage Range: 115 – 230V
- Frequency: 50 – 60Hz
- Current: 10A for 115VAC, 5A for 230VAC
Type: ATX12V
Output: +3.3V @ 16A, +5V @ 16A, +12V @ 36A,Â -12V @ 0.3A, +5Vsb @ 2.5A
Connectors: 1x 20/24pin Main Connector, 1x 4pin ATX Connector, 2x SATA Connectors, 4x Peripheral Connectors, 1x Floppy Connector
Fan: Forced air ventilation by 1 x 120mm black fan
Color: Black sandblasting coated case
Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 159.0 x 86.0 mm
Weight: 3.0 lbs
