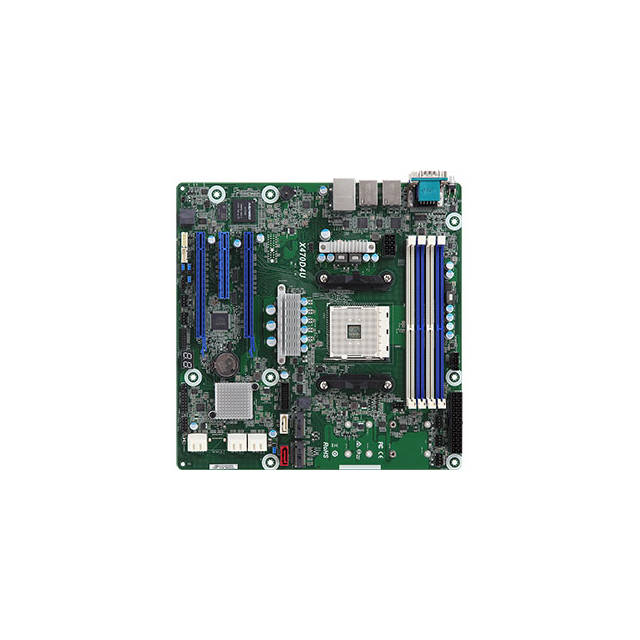

ASRock Rack X470D4U Socket AM4/ AMD Promontory X470/ DDR4/ SATA3&USB3.1/ M.2/ V&2GbE/ MicroATX Motherboard

Name: ASRock Rack X470D4U Socket AM4/ AMD Promontory X470/ DDR4/ SATA3&amp;USB3.1/ M.2/ V&amp;2GbE/ MicroATX Motherboard
Brand: ASRock Rack
SKU: KOAH-X470D4U
Availability: InStock

Original price was: $407.37.Current price is: $314.25.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

29 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-X470D4U Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X470D4U
CPU: Socket AM4 PGA 1331
- Supports AMD Ryzen (Pinnacle Ridge) 2nd Generation Series Processors
Chipset: AMD Promontory X470
Memory: 4x 288-pin DDR4 DIMM slots, Dual Channel, Support ECC and non-ECC UDIMM, max. 128 GB
Slots:
- PCI-Express 3.0 x16: PCIE6 – Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied; SLOT4 – Gen3 x8 link
- PCI-Express 3.0 x8: SLOT5 – Gen3 x4 link
Storage:
- SATA: 6x SATA3 Ports (1x SATA DOM port)
- M.2: 2x M.2 Ports, one supports type 2242/ 2260/ 2280/ 22110 and SATA3 6.0 Gb/s or PCIe 3.0 x2, one supports type 2242/ 2260/ 2280/ 22110 and PCIe 2.0 x4
Video: Aspeed AST2500 BMC Graphics w/ 256MB DDR4 VRAM
LAN: 2x Intel i210 Gigabit Ethernet Controllers, 1x Realtek RTL8211E for dedicated management GLAN
Ports: 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports with LED, 1x RJ45 Dedicated IPMI LAN Port with LED
Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin ATX Power Connector
Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
