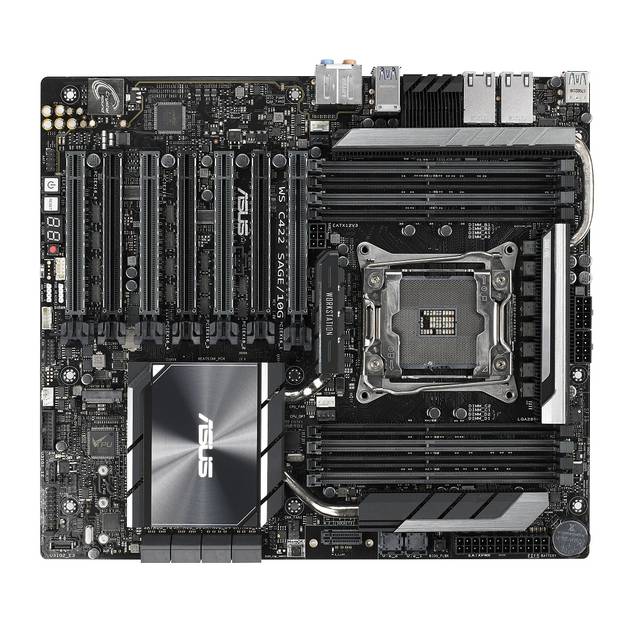

Asus WS C422 SAGE/10G LGA2066/ Intel C422/ DDR4/ 4-Way CrossFireX & 4-Way SLI/ USB3.1/ SATA3&M.2&U.2/ A&2GbE/ CEB Motherboard

Specifications

• Mfr Part Number: WS C422 SAGE/10G
• CPU: LGA 2066
  • Supports Intel Virtual RAID on CPU (VROC)
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Max Technology 3.0
• Chipset: Intel C422
• Memory: 8x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, RDIMM, LR-DIMM, Quad Channel, Max Capacity of 512GB
• Slots: 7x PCI-Express 3.0 x16 Slots (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
• Multi-Graphics: Supports AMD 4-Way CrossFireX and NVIDIA 4-Way SLI Technology
• Storage:
  • SATA: 8x SATA3 ports, Support RAID 0, 1, 10
  • M.2: 2x M.2 Ports (M key), one supports type 2242/ 2260/ 2280 & PCI-Express 3.0 x4 mode, one supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 mode
  • U.2: 2x U.2 Ports
• Audio: Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC
• LAN: 2x Intel X550-AT2 10-Gigabit Ethernet Controllers
• Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 at mid-board), 3x USB 3.1 Gen 2 Ports ( 1 Type A rear, 1 Type C rear, 1 at mid-board ), 1x Optical S/PDIF Out, 2x RJ45 LAN Ports,  Audio I/O Jacks
• Power Connector: 1x 24-pin EATX Power Connector, 2x 8-pin ATX 12V Power Connector, 1x 6-pin ATX Power Connector
• Form Factor: CEB, 12.0 x 10.5 inch/ 30.5 x 26.7 cm
