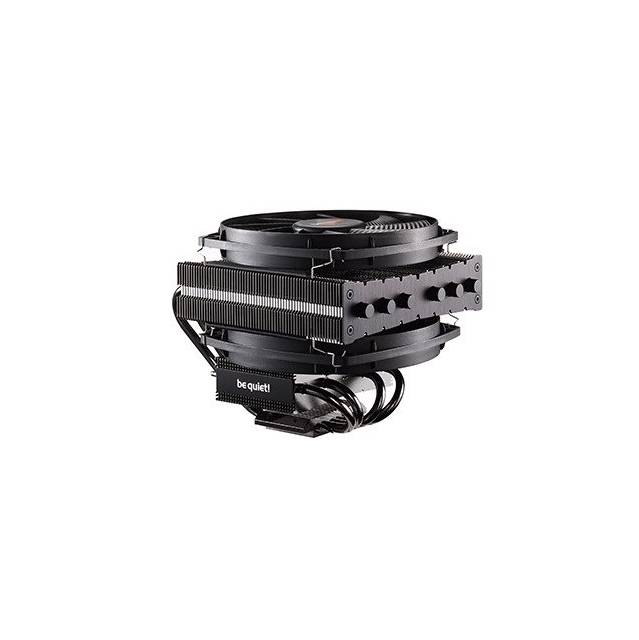

be quiet! BK020 Dark Rock TF – CPU Cooler – 220W TDP Intel: LGA 775 / 115x / 1366 / LGA2011(-3) Square ILM / 2066 AMD: AM2(+) / AM3(+) / FM1 / FM2(+)

Specifications

• Mfr Part Number: BK020
• Features:
  • Extremely high cooling capacity of 220W TDP supports even overclocked CPUs in compact PCs
  • Two powerful nickel-plated aluminum heat sinks
  • Six high-performance 6mm heat pipes with aluminum caps carry heat to the optimal location on the cooling fins
  • Top-flow layout enables ideal cooling not only for the CPU but also for surrounding components
  • Two SilentWings 135mm PWM fans featuring
    • advanced fluid-dynamic bearing with copper core
    • advanced six-pole motor for smoother operation and less turbulence
    • nine airflow-optimized fan blades
    • dynamically-balanced impeller
  • Noise is a scant 26.7dB(A) even at 100% PWM function
  • Single fan assembly and operation also supported, offering further space savings and even quieter operations
  • Anti-vibration rubber inserts on the heat sink cooling fins further dampen noise
  • Dark nickel-plated finish with brushed aluminum covers
  • Compatibility with all current Intel and AMD sockets
• Socket Type:
  • Intel: 775 / 115x / 1366 / LGA2011(-3) Square ILM / 2066
  • AMD: Socket AM2(+) / AM3(+) / FM1 / FM2(+)
• Fan:
  • Model: 2x SilentWings PWM 135mm
  • Speed: 1400 RPM (Controlled by PWM)
  • Noise Level: 50% RPM – 11.9 dBA, 75% RPM – 19.3 dBA, 100% RPM – 26.7 dBA
  • Air Flow: 67.8 CFM / 113.8 m3/h
  • Air Pressure: 1.85 mm H2O
  • Rated Voltage: 12 V DC
  • Input Current: 0.11 A
  • Input Power: 1.32 W
  • Bearing Type: Fluid Dynamic Bearing
  • Motor: 6-pole Fan Motor
  • Connector: 4 Pin PWM
  • Cable Length: 220 mm
  • Life Expectancy: 300,000 hrs
  • Dimensions: 135.0 x 135.0 x 22.0 mm
• Heatsink:
  • Heat Pipes Number / Diameter: 6x ø6 mm
  • Material: Copper Heat Pipes / Aluminum Fins
  • Number of Fins: top – 62, bottom – 64
  • CPU Contact Surface: CNC machined
  • Surface Treatment: Aluminium / Dark nickel-plated
  • Dimensions : 162.6.0 x 140.0 x 108.8 mm
• Thermal Design Power: 220 W
• Dimensions: 140.0 x 162.6 x 130.8 mm (Overall)(w/o mounting material)
• Weight: 810.0 g
