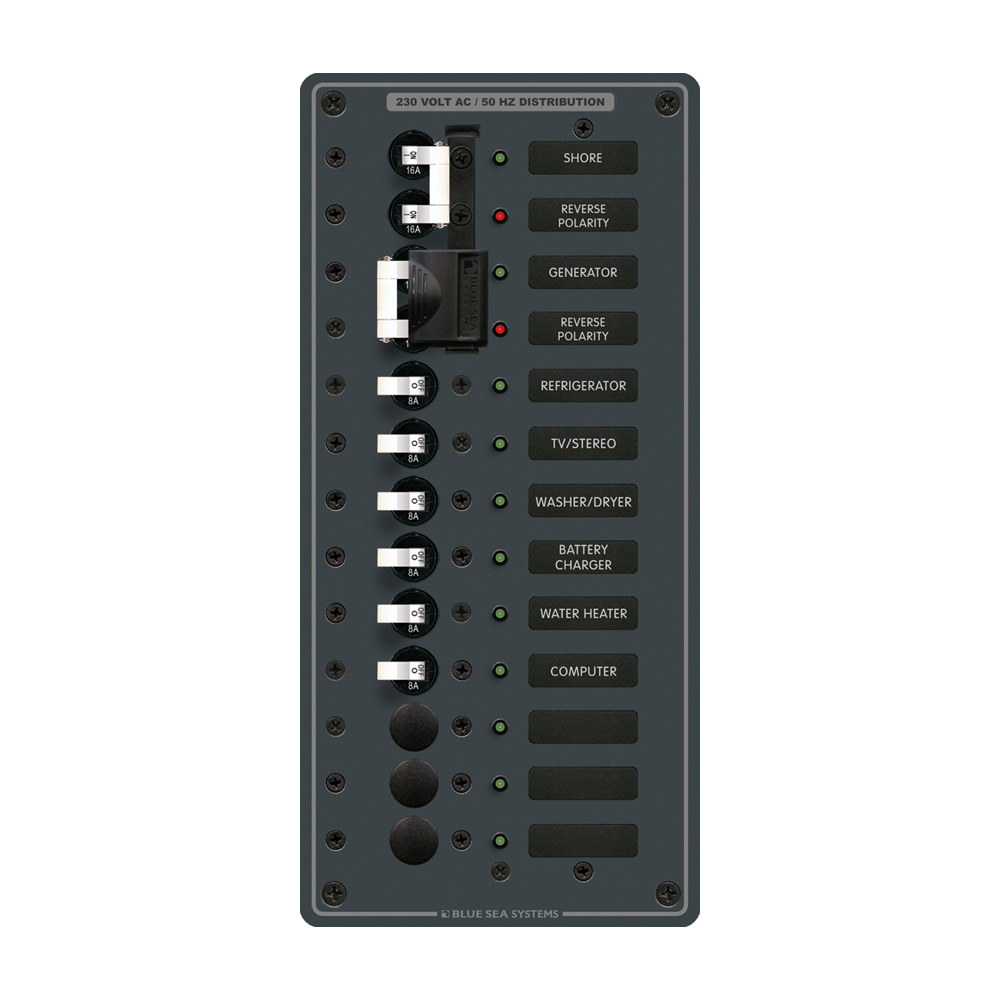

Blue Sea 3566 AC Toggle Source Selector (230V) – 2 Sources + 9 Positions

SKU: 20888

Manufacturer: Blue Sea Systems

Manufacturer Part Number: 8566

UPC Code: 632085085667

AC Toggle Source Selector (European)

PN: 8566
White Switches

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage – 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels
• Over 500 individual labels available
• For 230V AC Systems
