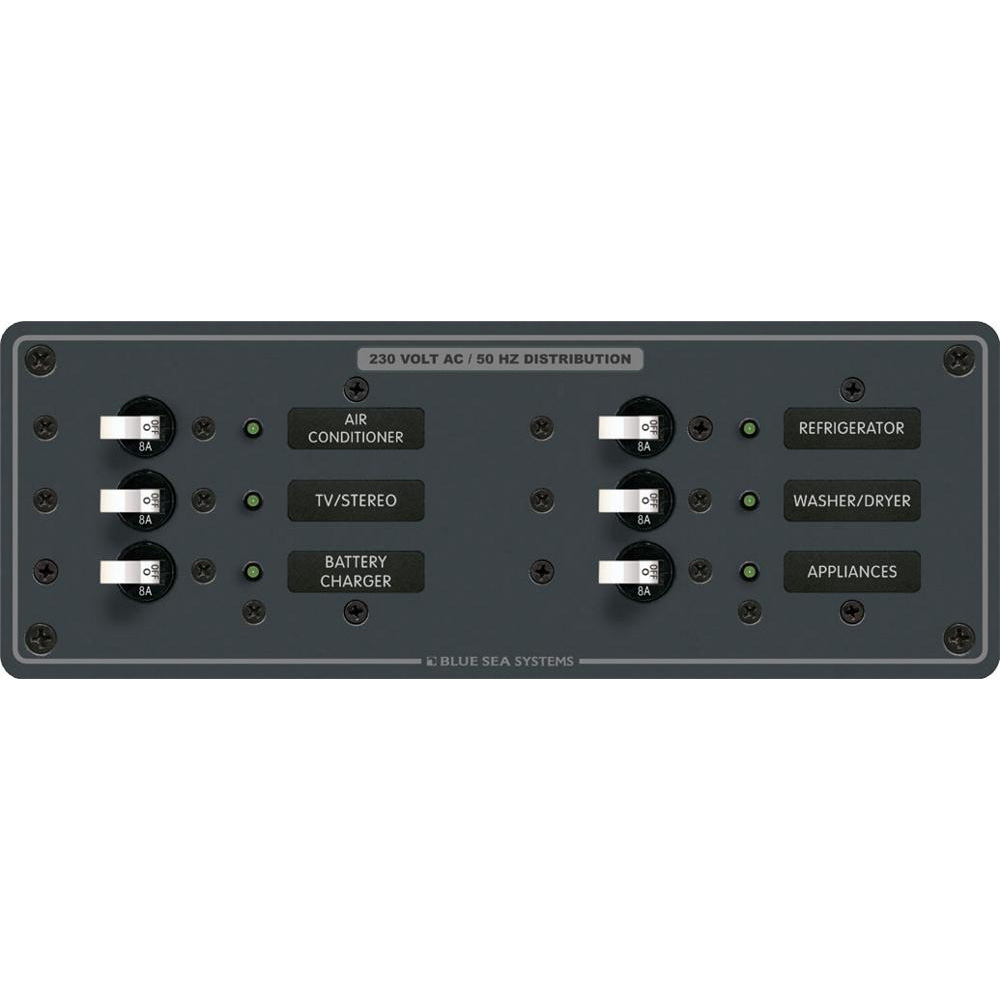

Blue Sea 8197 AC 6 Position (European)

SKU: 16081

Manufacturer: Blue Sea Systems

Manufacturer Part Number: 8197

UPC Code: 632085081973

8197 AC 6 Position (European)

Features:

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit posistions
• Maximum panel amperage – 100 Amperes
• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included

Specifications:

• Positions: 6
• Nominal Voltage: 230v AC
• Maximum Amperage: 100A
• Height: 3.75″
• Width: 10.5″

Included:

• (6) 7299 A-Series White Toggle Circuit Breaker – Single Pole 8A
• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (6) 8134 LED – 230v AC Green
