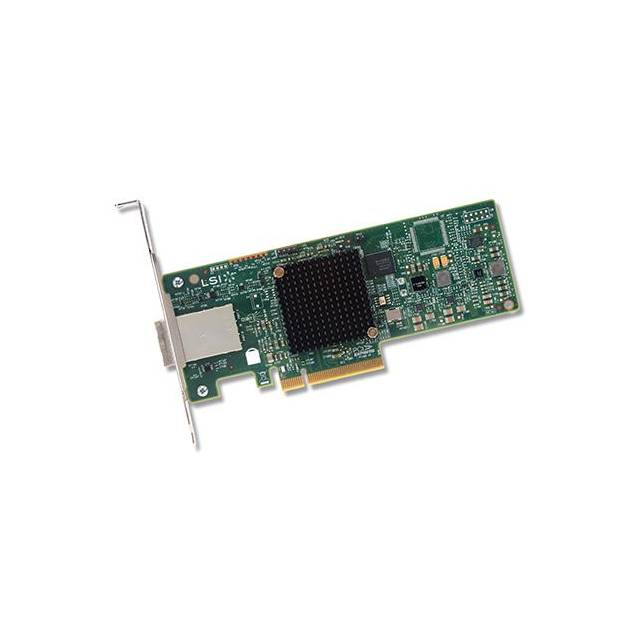

Broadcom LSI SAS 9300-8e 8-port 12Gb/s SATA+SAS PCI-Express 3.0 Low Profile Host Bus Adapter, Single

Specifications

• Mfr Part Number: LSI00343
• Features:
  • Eight ports of 12Gb/s SAS + SATA ports
  • Eight lanes of PCI Express 3.0
  • Low-profile form factor
  • Mini-SAS HD connectors
  • LSI SAS 3008 12Gb/s SAS+SATA controller
  • Supports SSDs, HDDs, and tape drives
  • Provides connectivity in a low-profile form factor
  • 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
  • High performance with 12Gb/s SAS data transfer rates
• Connectors: 8x Mini-SAS HD SFF8644 External Connectors
• Device Support: 1024 Non-RAID devices
• Host Bus Type: PCI-Express 3.0 x8
• PCI Data Burst Transfer Rates: Half Duplex x8, PCIe 3.0, 8000 MB/s
• Storage Connectivity/Data Transfer Rates: 12Gb/s SAS 3.0 Compliant
• SAS Bandwidth: Half Duplex (x4 wide bus) 4800 MB/s
• Port Configurations: 8 ea, x1 ports (individual drives) 2 ea, x4 wide port
• I/O Controller: LSISAS3008 Fusion MPT 2.5
• Brackets: Full Height and low profile vented
• Cable Support: Passive Copper, Active Optical
• Operating Voltage: +12V +/-8%; 3.3V +/-9%
• PCI Power (Nominal): 14.5W
• MTBF: > 2,800,000 Hours
• Solution Provided: High performance for high-end servers connecting to large scale storage enclosures and for internal drive connectivity in 1U/2U servers and workstations
• OS Support: Extensive support includes Microsoft Windows Vista/ 2008/ Server 2003/ 2000/ XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more
• Regulatory Certifications: EMC – Class B-US (CFR 47, P15B); Canada (ICES-00); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety – EN60950; RoHS; WEEE
• Dimensions: Low Profile, 2.6 x 6.6 inch
• Package Contents: 9300-8e Host Bus Adapter & Documentation CD
• RoHS Compliant
