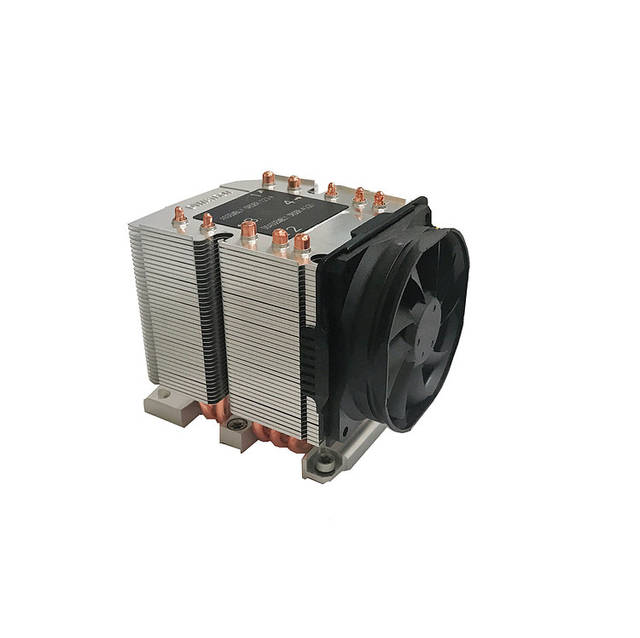

Dynatron B11 3U Server CPU Fan For Intel FCLGA3647

Name: Dynatron B11 3U Server CPU Fan For Intel FCLGA3647
Brand: Dynatron
SKU: KOAH-B11
Availability: InStock

Original price was: $66.69.Current price is: $51.45.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

12 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-B11 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: B11
CPU Socket: FCLGA3647
Solution: 3U Server and Up
Material: Aluminum Heatsink with Heatpipe Embedded
Fan Dimension: 80.0 x 80.0 x 25.0 mm
Speed:
- At Duty Cycle 20%: 1300 Â± 200 RPM
- At Duty Cycle 50%: 2300 Â± 10% RPM
- At Duty Cycle 100%: 4000 Â± 10% RPM
Rated Voltage: 12V
Bearing: 2 Ball Bearing
Power:
- At Duty Cycle 20%: 0.96 W
- At Duty Cycle 50%: 1.44 W
- At Duty Cycle 100%: 4.80 W
Air Flow:
- At Duty Cycle 20%: 12.5 CFM
- At Duty Cycle 50%: 28.8 CFM
- At Duty Cycle 100%: 50.0 CFM
Noise Level:
- At Duty Cycle 20%: 16.0 dBA
- At Duty Cycle 50%: 30.2 dBA
- At Duty Cycle 100%: 42.2 dBA
Air Pressure:
- At Duty Cycle 20%: 0.5 mm-H2O
- At Duty Cycle 50%: 2.6 mm-H2O
- At Duty Cycle 100%: 7.8 mm-H2O
Lead Wire Pin Out:
- Lead Wire Pin Out
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
Thermal Grease: Shin-Etsu 7762 Pre-printed
Dimensions: 108.0 x 80.0 x 110.0 mm
Weight: 600.0 g
RoHS Compliant
