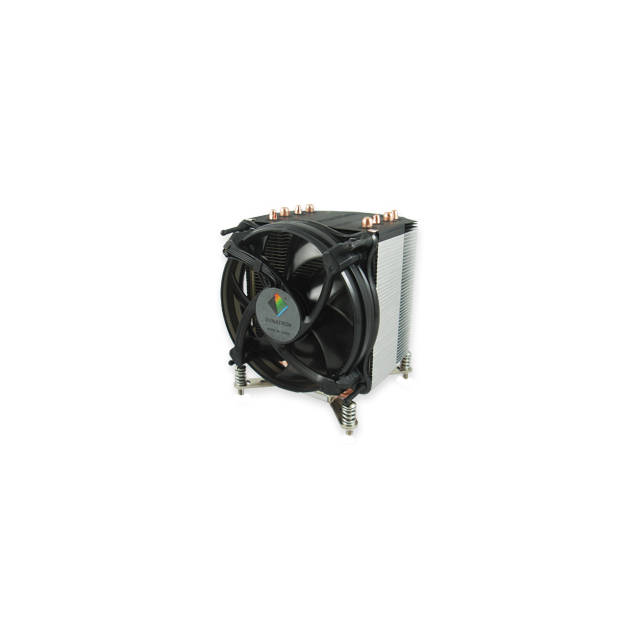

Dynatron R17 3U Server CPU Fan For Intel LGA2011

Name: Dynatron R17 3U Server CPU Fan For Intel LGA2011
Brand: Dynatron
SKU: KOAH-R17
Availability: InStock

Original price was: $54.08.Current price is: $41.72.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

13 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-R17 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: R17
CPU Application: LGA2011, Supports Intel Sandy Bridge Romley-EP/EX Processors up to TDP 160 Watts Overclocking
Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan:
- Rated Speed:
  - At Duty Cycle 0~20%: 1000 Â± 200 RPM
  - At Duty Cycle 50%:Â 1800 Â±10% RPM
  - At Duty Cycle 100%: 2500 Â±10% RPM
- Bearing: Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
  - At Duty Cycle 0~20%: 0.96 W
  - At Duty Cycle 50%:Â 1.44 W
  - At Duty Cycle 100%:Â 3.0 W
- Rated Airflow:
  - At Duty Cycle 0~20%:Â 17.34 CFM
  - At Duty Cycle 50%:Â 31.21 CFM
  - At Duty Cycle 100%:Â 43.36 CFM
- Rated AcousticalÂ Level:
  - At Duty Cycle 0~20%:Â 17.0 dBA
  - At Duty Cycle 50%:Â 24.78 dBA
  - At Duty Cycle 100%:Â 31.92 dBA
- Rated StaticÂ Pressure:
  - At Duty Cycle 0~20%:Â 0.48 mm-H₂O
  - At Duty Cycle 50%:Â 1.55 mm-H₂O
  - At Duty Cycle 100%:Â 3.0 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 – Ground (-)
  - Pin2 – Power (+)
  - Pin3 – Signal (Tachometer Output)
  - Pin4 – PWM Control
Dimensions:
- Fan: 92.0 x 92.0 x 25.0 mm
- Overall:Â 91.0 xÂ 91.0 x 110.0 mm
Weight: 530.0 Â± 5.0 g
RoHS Compliant
