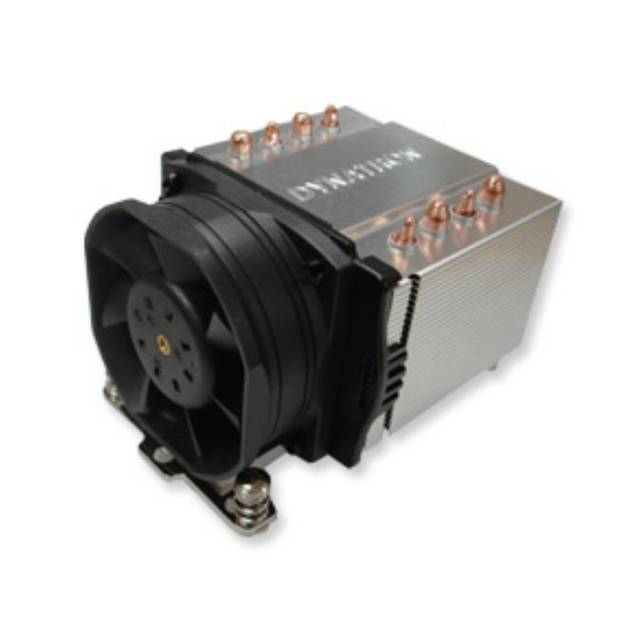

Dynatron R24 2U Server CPU Fan For Intel LGA2011

Name: Dynatron R24 2U Server CPU Fan For Intel LGA2011
Brand: Dynatron
SKU: KOAH-R24
Availability: InStock

Original price was: $46.87.Current price is: $36.15.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

21 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-R24 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: R24
CPU Application: LGA2011
- Narrow Type, 56 x 94mm mounting pitch
- Supports Intel Sandy Bridge Romley-EP/EX Narrow ILM Processors up to TDP 160 Watts
Material: Aluminum Stacked Fin with Heat Pipes Directly Contact CPU
Fan:
- Rated Speed:
  - At Duty Cycle 0~20%: 1500 Â±10% RPM
  - At Duty Cycle 50%:Â 3500 Â±10% RPM
  - At Duty Cycle 100%: 7000 RPM Min
- Bearing: Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
  - At Duty Cycle 0~20%: 0.60 W
  - At Duty Cycle 50%: 2.16 W
  - At Duty Cycle 100%: 7.20 W
- Rated Airflow:
  - At Duty Cycle 0~20%: 8.8 CFM
  - At Duty Cycle 50%: 20.3 CFM
  - At Duty Cycle 100%: 40.5 CFM
- Rated AcousticalÂ Level:
  - At Duty Cycle 0~20%: 16.0 dBA
  - At Duty Cycle 50%: 32.9 dBA
  - At Duty Cycle 100%: 47.5 dBA
- Rated StaticÂ Pressure:
  - At Duty Cycle 0~20%: 0.7 mm-H₂O
  - At Duty Cycle 50%: 3.6 mm-H₂O
  - At Duty Cycle 100%: 14.3 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 – Ground (-)
  - Pin2 – Power (+)
  - Pin3 – Signal (Tachometer Output)
  - Pin4 – PWM Control
Dimensions:
- Fan: 60.0 x 60.0 x 28.0 mm
- Overall: 112.0 x 84.0 x 67.0 mm
Weight: 400.0 Â± 5.0 g
RoHS Compliant
