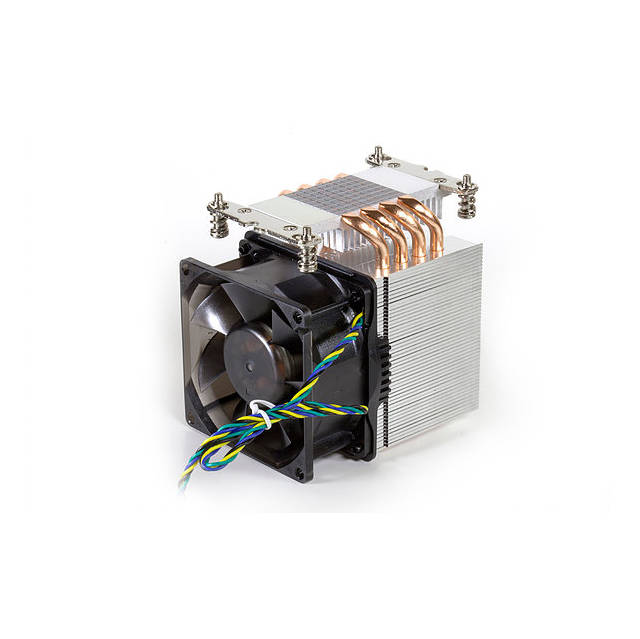

Dynatron R27 3U Server CPU Fan For Intel Narrow Type LGA 2011

Name: Dynatron R27 3U Server CPU Fan For Intel Narrow Type LGA 2011
Brand: Dynatron
SKU: KOAH-R27
Availability: InStock

Original price was: $48.67.Current price is: $37.54.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

2 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-R27 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: R27
CPU Application: Intel LGA 2011 (Narrow Type, 56mm x 95mm Mounting Pitch)
Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan:
- Speed:
  - At Duty Cycle 20%: 1000 RPM
  - At Duty Cycle 50%: 2000 RPM
  - At Duty Cycle 100%: 3800 RPM
- Bearing: Double-Ball
- Rated Voltage: 12 V
- Power:
  - At Duty Cycle 20%: 2.2 W
  - At Duty Cycle 50%: 3.6 W
  - At Duty Cycle 100%: 7.9 W
- Air Flow:
  - At Duty Cycle 20%: 13.80 CFM
  - At Duty Cycle 50%: 30.78 CFM
  - At Duty Cycle 100%: 65.40 CFM
- Noise Level:
  - At Duty Cycle 20%: 16.0 dBA
  - At Duty Cycle 50%: 31.5 dBA
  - At Duty Cycle 100%: 43.4 dBA
- Air Pressure:
  - At Duty Cycle 20%: 0.42 mm-H₂O
  - At Duty Cycle 50%: 2.45 mm-H₂O
  - At Duty Cycle 100%: 9.75 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 – (-)
  - Pin2 – (+)
  - Pin3 – Signal (Tachometer output)
  - Pin4 – PWM
Solution: 3U Server and up, Workstation
Dimensions: 112.0 x 82.0 x 110.0 mm
Weight: 550.0 g
