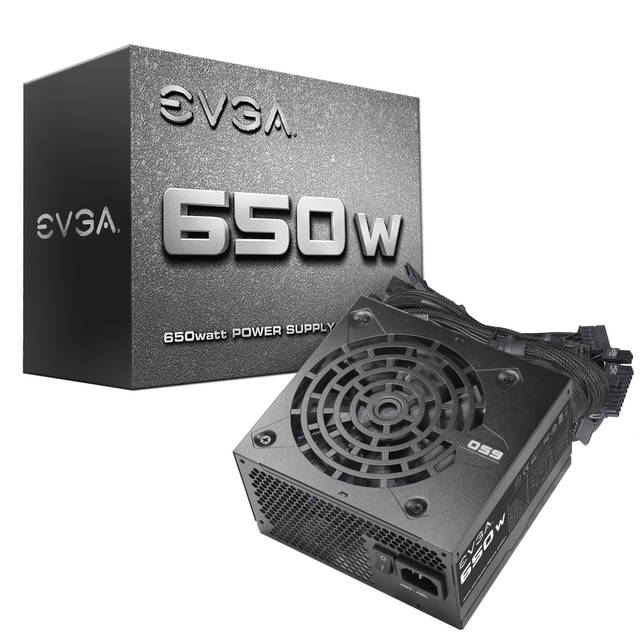

EVGA 100-N1-0650-L1 650W ATX12V & EPS12V Power Supply

Name: EVGA 100-N1-0650-L1 650W ATX12V &amp; EPS12V Power Supply
Brand: EVGA
SKU: KOAH-100-N1-0650-L1
Availability: InStock

Original price was: $111.76.Current price is: $86.21.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

8 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-100-N1-0650-L1 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: 100-N1-0650-L1
Features:
- Quiet and Intelligent Auto Fan for near-silent operation
- Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Maximum Power: 650 W
Input:
- Voltage: 100 ~ 240 VAC
- Current: 8 – 4 A
- Frequency Range: 50 ~ 60 Hz
Type: ATX12V / EPS12V
Efficiency: 75% Typical
MTBF: 100,000 hours
Fan: 1x 120mm Sleeve Bearing Fan
Output: +3.3V @ 24A, +5V @ 20A, +12V @ 52A, +5VSB @ 3A, -12V @ 0.3A
Connectors: 1x 24pin ATX Main Connector, 1x 8(4+4)pin EPS Power Connector, 2x 8(6+2)pin PCI-Express Connector, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
Approvals: TUV, cUL, CE, FCC, BSMI, CCC, WEEE, RoHS
Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
Weight: 3.0 lbs
