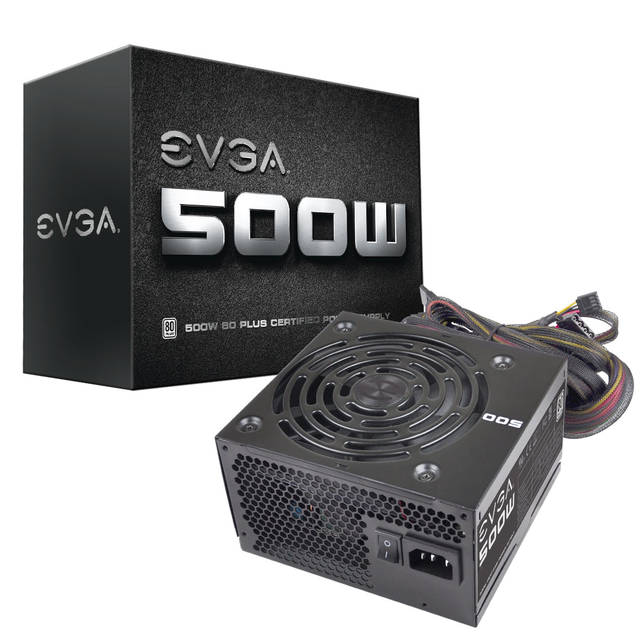

EVGA 100-W1-0500-KR 500W 80 PLUS ATX12V Power Supply

Name: EVGA 100-W1-0500-KR 500W 80 PLUS ATX12V Power Supply
Brand: EVGA
SKU: KOAH-100-W1-0500-KR
Availability: InStock

Original price was: $86.52.Current price is: $66.74.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

48 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-100-W1-0500-KR Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: 100-W1-0500-KR
Features:
- Heavy-duty Protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) and OTP (Over Temperature Protection)
- Quiet and Intelligent Auto Fan for near-silent operation
Maximum Power: 500 W
Input:
- Voltage: 100 ~ 240 VAC
- Current: 8 A
- Frequency Range: 50 ~ 60 Hz
Type: ATX12V
Efficiency: 80% Typical
Fan: 1x 120mm Fan
Output: +3.3V @ 24A, +5V @ 20A, +12V @ 40A, +5VSB @ 3A, -12V @ 0.3A
Connectors: 1x 24Pin ATX Main Power Connector, 1x 8Pin EPS12V Power Connector, 2x 6+2Pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Molex Connectors, 1x Floppy Connector
Approvals: TUV, cUL, UL, CE, FCC, WEEE, RoHS
Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
Weight: 4.0 lbs
