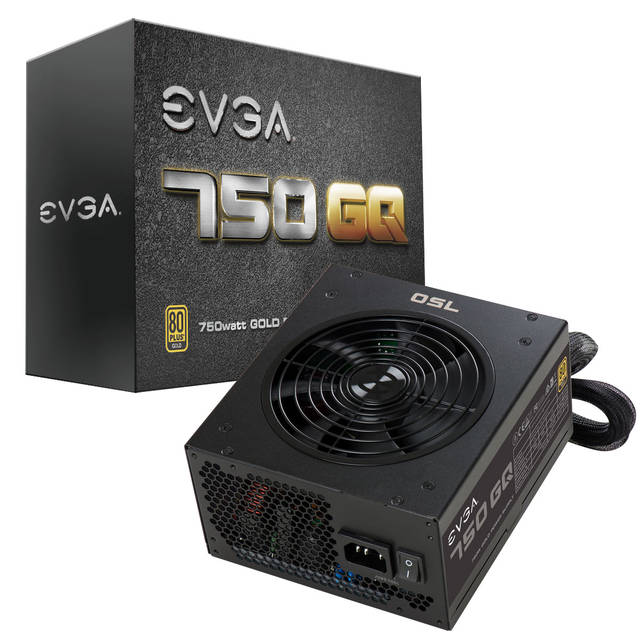

EVGA 750 GQ 210-GQ-0750-V1 750W 80 PLUS Gold ATX12V & EPS12V Power Supply w/ Active PFC

Specifications

• Mfr Part Number: 210-GQ-0750-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • NVIDIA SLI & AMD Crossfire Ready
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Modular Design to reduce clutter and improve airflow
  • 100% Japanese Capacitors ensure long-term reliability
  • Active Clamp +DC to DC design for efficient operation
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
  • Active Power Factor Correction (PFC)
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Power Factor Correction: Active PFC
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing Fan
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.4A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connector, 6x 8pin (6+2) PCI-Express Connectors, 9x SATA Connectors, 3x 4pin Peripheral Connectors, 2x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance w/ ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 165.0 x 85.0 mm
• Weight: 7.0 lbs
