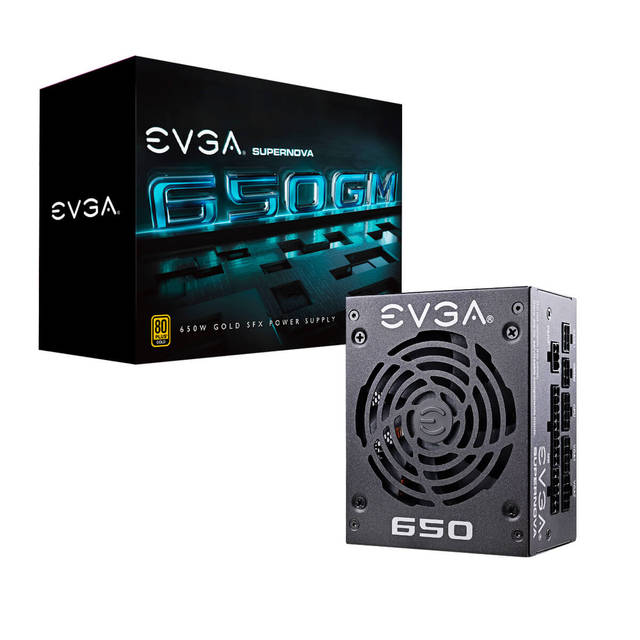

EVGA SuperNOVA 650 GM 123-GM-0650-Y1 650W 80 PLUS Gold ATX12V & EPS12V Power Supply

Specifications

• Mfr Part Number: 123-GM-0650-Y1
• Features:
  • 100% Japanese Capacitors ensure long-term reliability
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems
  • Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
  • Active Power Factor Correction (PFC)
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 9 – 4.5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 92mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54.1A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS (CPU) Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, cTUVus, WEEE, RoHS  Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 125.0 x 100.0 x 63.0 mm
• Weight: 3.0 lbs
