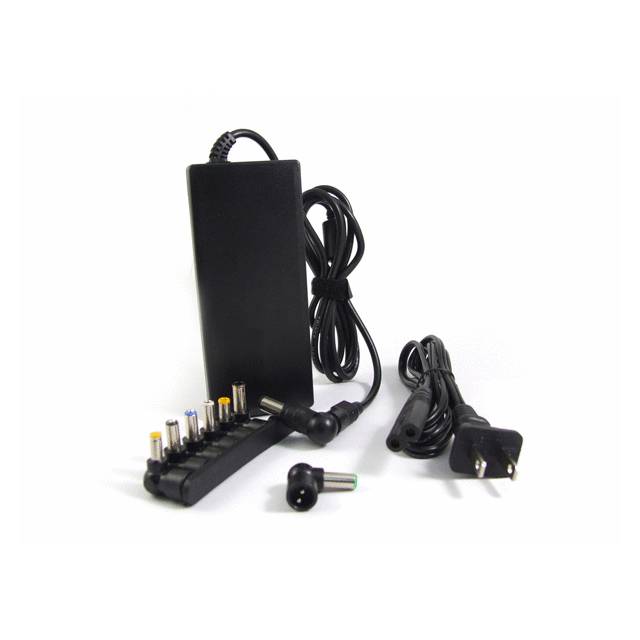

iMicro 90W Universal Notebook Adapter(Black)

Name: iMicro 90W Universal Notebook Adapter(Black)
Brand: iMicro
SKU: KOAH-PS-ADPT90W
Availability: InStock

Original price was: $41.46.Current price is: $31.98.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

28 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-PS-ADPT90W Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: PS-ADPT90W
Input voltage: 100Vdc to 240Vdc
Variation Range: 90-264Vac
Input Current: 1.6A(MAX)
Inrush current: 120 Amps Max. Cold start at 240Vac input, with rated load and 25 Â°C ambient
Ac Leakage Current: 0.25mA Max. At 240Vac input
Out Voltage: 19Vdc
Out Current: 4.74A
Tolerance: 5%(18.05~19.95 V)
Ripple and Noise: 400mVp-p(MAX)
Temperature Coefficient: Â±0.05%/Â°C
MTBF: 50000 hours at 25Â°C (MIL-STD-217F)
Efficiency: 80%
Short Circuit Protection: Yes
Over current Protection: Yes
Over Voltage Protection: Yes
DC Wirings: UL1185 ,18AWG, Black L=1.5m
Compatibility: Compatible with most 19V Input Notebooks include ACER TOSHIBA DELTA LITEON HP/COMPAQ LENOVO/IBM FUJITSU GATEWAY LISHIN …etc
- 4.8×1.7mm Compatibility: HP, Compaq, NEC, Asus
- 5.5×1.5mm Compatibility: Acer Liteon Delta
- 5.5×2.1mm Compatibility: HP, Compaq, Acer, Gateway, IBM, Asus, Liteon, NEC
- 5.5×2.5mm Compatibility: HP, Compaq, Acer, Gateway, IBM, Asus, Liteon, NEC
- 5.5×3.8mm Compatibility: Samsung
- 6.3×3.0mm Compatibility: Toshiba, NEC
- 6.5×4.5mm Compatibility: Sony Fujitu
- 7.4×5.0mm Compatibility: HP Dell
