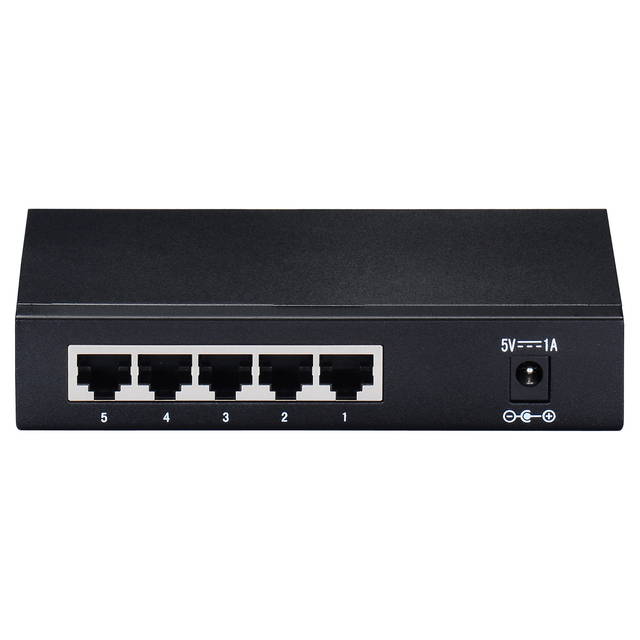

Kasda KS1005 5-Port 10/100/1000M Gigabit Ethernet Switch (Metal Case)

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

Compare

Add to wishlist

Ask a Question

SKU: KOAH-KS1005 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: KS1005
Features:
- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3az, IEEE802.3ab standards
- 5-10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Supports IEEE802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
- Store and forward mode operates
- Supports MAC address auto-learning and auto-aging
- Supports IEEE802.3az Protocol
- LED indicators for monitoring power, link/activity
- Metal case
- External power adapter supply
Chipset: RTL8367N
Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3az, IEEE802.3ab
Network Media (Cable):
- 10BASE-T: UTP category 3,4,5 cable (maximum 100m)
- 100BASE-T: UTP category 5, 5e cable (maximum 100m)
- 1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
Number of Ports: 5x 10/100/1000Mbps Auto-Negotiation ports
LED indicators:
- Link/ActSpeed:
  - 10M/100M: Green
  - 1000M: Amber
- Power: Green
Transfer Method: Store-and-Forward
Switching Capacity: 10Gbps
MAC capacity: 2K
Frame Filtering and Forward Rate:
- 10Mbps: 14880pps
- 100Mbps: 148800pps
- 1000Mbps: 1488000pps
Environment:
- Operating Temperature: 0Â°C – 40Â°C
- Storage Temperature: -40Â°C – 70Â°C
- Operating Humidity: 10%~90% non-condensing
- Storage humidity: 5%~90% non-condensing
Power Supply/Consumption:
- Input: DC 5V /550mA(adapter)
- Consumption: 1.6W
Dimensions(WxLxH): 78.0 x 140.0 x 28.0 mm
