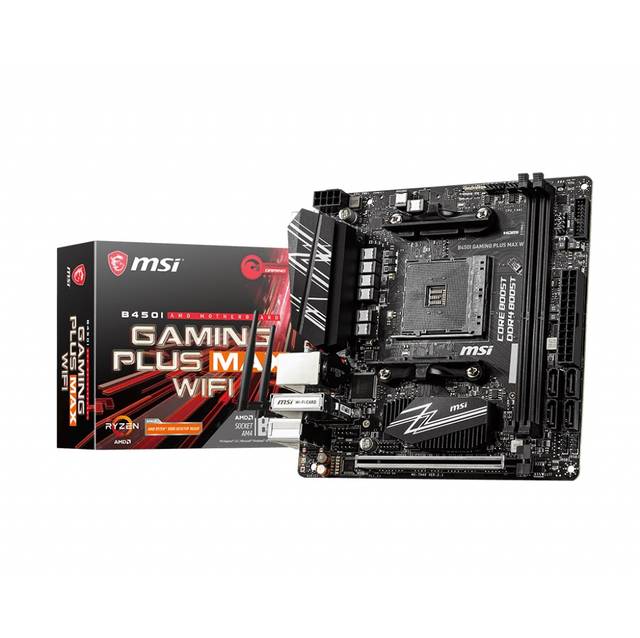

MSI B450I GAMING PLUS MAX WIFI Socket AM4/ AMD B450/ DDR4/ SATA3&USB3.2/ M.2/ WiFi&Bluetooth/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: B450IGPMAXWI
• Model Name: B450I GAMING PLUS MAX WIFI
• CPU: Support AMD Ryzen 1st, 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors for Socket AM4
• Chipset: AMD B450 Chipset
• Memory:
  • 2x DDR4 memory slots, support up to 64GB
    – Supports 1866/ 2133/ 2400/ 2667Mhz by JEDEC
    – Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory [non-ECC mode]
• Slots:
  • 1x PCIe 3.0 x16 slot
    – Supports x16 speed with AMD Ryzen 1st, 2nd and 3rd Generation processors
    – Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors
    – Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
• Onboard Graphics:
  • ​1 x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
  • 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz
• Storage:
  • AMD B450 Chipset: 4x SATA 6Gb/s ports
  • AMD CPU: 1x M.2 slot [M2_1, Key M]
    – Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices [AMD Ryzen 1st, 2nd and 3rd Generation/ Ryzen with Radeon Vega Graphics]
    – Supports PCIe 3.0 x2 and SATA 6Gb/s 2280 storage devices [AMD Athlon with Radeon Vega Graphics]
• RAID:
  • AMD B450 Chipset
    – Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
• USB:
  • AMD B450 Chipset
    – 2x USB 3.2 Gen1 [SuperSpeed USBl Type-A ports on the back panel
    – 4x USB 2.0 [High-speed USB] ports [2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector]
  • AMD CPU
    – 4x USB 3.2 Gen1 [SuperSpeed USB] ports [2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen1 connector]
• Audio:
  • Realtek ALC887/ALC897 Codec
    – 7.1-Channel High Definition Audio
• LAN: 1x Realtek 8111H Gigabit LAN controller
• WIFI & Bluetooth: Intel Dual Band Wireless-AC 3168 module
  • The Wireless module is pre-install in the M2_2 [Key E] slot
  • Supports Wi-Fi 1×1 802.11ac, dual band [2.4GHz,5GHz] up to 433 Mbps speed
  • Supports Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR
• Internal Connectors:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 2.0 connector [support additional 2 USB 2.0 ports]
  • 1x USB 3.2 Gen1 connectors [support additional 2 USB 3.2 Gen1 ports]
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 2x 5050 RGB LED strip 12V connectors
• Back Panel Ports:
  • USB 2.0
  • DisplayPort
  • LAN
  • Wireless / Bluetooth
  • Keyboard / Mouse
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • Audio Connectors
• I/O Controller: NUVOTON NCT6795D Controller Chip
• Dimensions:
  • Mini-ITX Form Factor
  • 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
• Operating System: Support for Windows 10 64-bit
