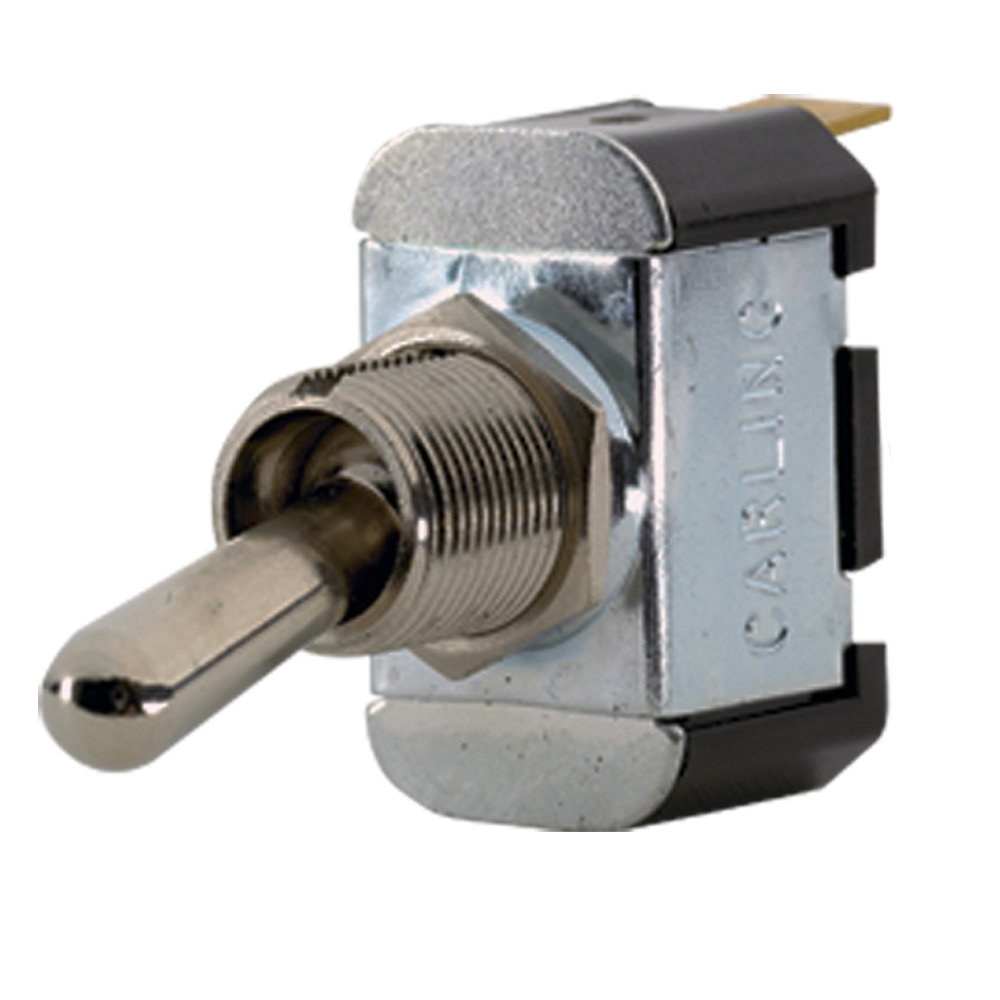

Paneltronics SPST ON/(OFF) Metal Bat Toggle Switch – Momentary Configuration

SKU: 29797

Manufacturer: Paneltronics

Manufacturer Part Number: 001-017

UPC Code: 602290100417

Metal Bat Handle Toggle Switches

• Single or double pole, and maintaining or momentary configurations are available

• Rated at 10A 250VAC, 15A 125VAC. and 15A 30VDC (ABYC E-11.14.1.1)

• AC units are UL Recognized for use in the USA and CSA certified for use in Canada

• Optional silicone rubber boots provide a watertight panel seal

• 1/4″ male tab terminals are standard

• Hole plugs 1/2″ diameter black (P/N 016-004) and White (P/N 016-020)
