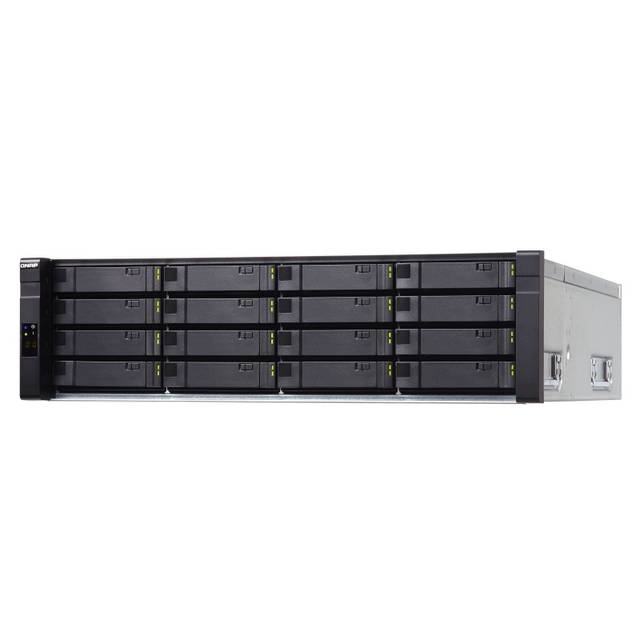

QNAP EJ1600-V2-US SAS 12Gbps 16-Bay 3U Rackmount RAID Expansion Enclosure for QNAP NAS

Specifications

• Mfr Part Number: EJ1600-V2-US
• Hardware:
  • Host Interface: Three SAS (one input, one output, one reserved) 12Gbps for each controller, 4x port
  • Hard Drive: 16x 3.5″ SAS12/6Gb/s, hard drive or 2.5″ SAS SSD
  • LED Indicators:
    • System Power LED (Green): on/off
    • System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
    • LCD Status Display (Two-digit number): Status of JBOD connection
  • Buttons: Power / Reset
  • Sound Level: 53.5 db(A)
• Software:
  • Expansion Enclosure Management:
    • The functions listed below are managed via the QNAP QES operating system
    • Support for hard disk’s S.M.A.R.T. capacity
    • RAID expansion enclosure LED identifier
    • Location indication of RAID expansion enclosure
    • Location indication of hard disks on RAID expansion enclosure
    • Smart fan control
    • In-band firmware update
    • The disks, RAID Groups, storage pools, and volumes in the RAID expansion enclosures are configured via the QES operating system
    • Upto 1PB Single Volume
    • Support for multiple RAID groups in a storage pool to ensure data safety
    • Online storage pool expansion
    • Online volume expansion
    • Block-based iSCSI LUN
    • Support for thin-provisioned volume with space reclamation
    • Support for thin-provisioned iSCSI LUN with space reclamation
  • High Availability Based On Dual Active Controller / Dual Loop:
    • Superior High Availability
    • Dual controller, dual-loop architecture to tolerate the failure of a single node
    • Dual back-end IO paths (dual controller configuration) Topology:
      • Single controller, single
      • Single controller, multiple path, loop
      • Dual-controller, single path
      • Dual-controller, multiple path, loop
    • Scalability
    • Support disks up to 16
    • Support cascade JBOD configuration to connect more JBODs, up to 6 sets
    • Superior FRU Design
    • Hot swappable PSU module, disks and controller module, for easier maintenance and deployment Dual Slim type PSU module
• Form Factor: 3U Rackmount
• Power Supply: Redundant/ Hot Swap ATX Power Supply, 450W, 90-240Vac, 50-60Hz
• Power Consumption: Operating Mode, Typical – 344.19 W
• Dimensions (WxDxH): 17.57 x 24.33 x 5.20 inch
• Weight: 53.15 lbs
