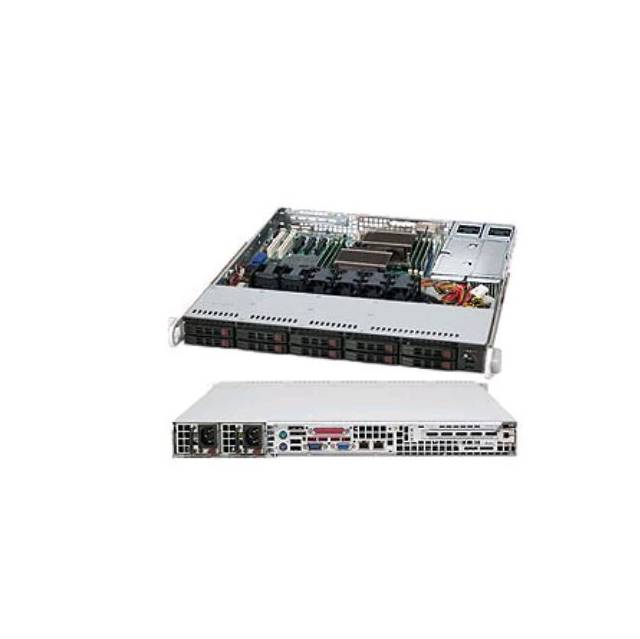

Refurbished!!! Supermicro SuperChassis CSE-116TQ-R700CB 700W/750W 1U Rackmount Server Chassis, BULK (Black)
Original price was: $1,050.86.$810.66Current price is: $810.66.
Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.
1 in stock
Description
Specifications
- Mfr Part Number: CSE-116TQ-R700CB
- Color: Black
- Form Factor: 23.5″ Depth 1U Rackmount Chassis – supports for maximum motherboard sizes of 12″ x 13″
- Processor Support: Dual, Single Intel / AMD Processors
- Expansion Slots:Â 1 full-height & full-length expansion slot(s)
- Drive Bays:Â
- ​10 x 2.5″ hot-swap SAS/SATA drive bay
- SAS or enterprise SATA HDD only recommended
- Backplane:Â 10-port 1U TQ (W/ AMI 9072) backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD
- Front Panel:
- Buttons:Â
– Power On/Off button– System Reset Button– Unit Identification (UID) button - LEDs:
-Â 2 Network Activity LEDs– HDD activity LED– Power Status LED– Unit Identification (UID) LED - Ports: 2x USB Ports
- Buttons:Â
- System Cooling:Â
- ​4 x 40x56mm counter-rotation PWM fan(s)
- Optional 2 x fans for AOC cooling
-
Operating Environment (System):
-
Operating Temperature Range: 5°C – 35°C (41°F – 95°F)
-
Non-Operating Temperature Range: -40°C – 70°C (-40°F – 158°F)
-
Operating Relative Humidity Range: 8% – 90% (non-condensing)
-
Non-Operating Relative Humidity Range: 5% – 95% (non-condensing)
-
- Power Supply: 1U 700/750W hot swap redundant power supply
-
Power Efficiency: 92%
-
Total Output Power and Input: 700W with Input 100 – 140Vac; 750W with Input 180 – 240Vac
-
AC Input Frequency: 50-60Hz
-
Dimensions (L x W x H): 320 x 54.5 x 40.25 mm
-
Output Type: Backplanes (gold finger)
-
-12V: Max: NAA
-
+12V: Max: 58A / Min: 0.5A (100Vac – 140Vac); Max: 62A / Min: 0.5A (180Vac – 240Vac)
-
+5V: Max: NAA
-
+3.3V: Max: NAA
-
+5Vsb: Max: 3A / Min: 0A
-
+12Vsb: Max: NAA
-
Power Distributor: PDB-PT112-2424; O/P: 12V/54; +5V Max: 25; +3.3V Max: 25; -12V Max: 0.6
-
Certification: 80 PLUS Gold Certified
-
-
Regulatory (Power Supply):
-
Power Supply Safety/ EMC: BSMI; CCC; CE/EMC; FCC class A; TUV/CB; UL/CUL
-
- Dimensions (HxWxD): 1.7″ x 17.2″ x 23.5″/ 43 x 437 x 597 mm
-
Packaging (W x H x L):Â 24″ (610 mm) x 8″ (203 mm) x 32″ (813 mm)
- Gross Weight: 36 lbs (16.33 kg)
- Chassis Only. CPU, MB, HD, memory and other parts are not included.
Additional information
| Weight | 36.00 lbs |
|---|---|
| Brand | Supermicro |
