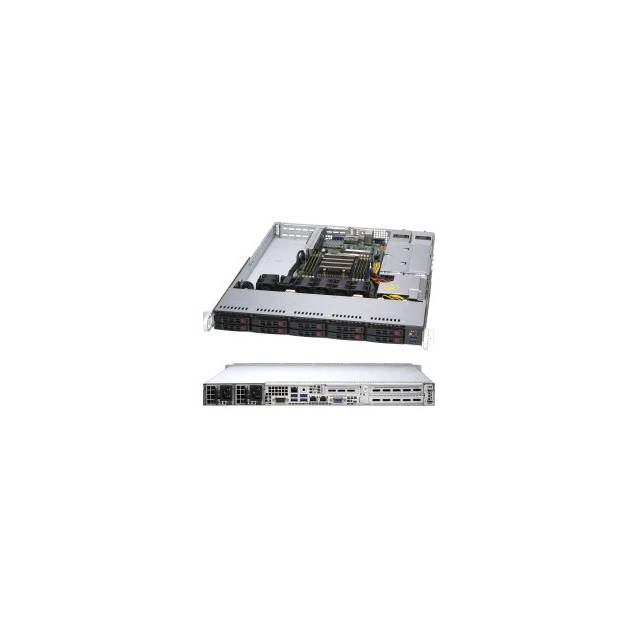

Supermicro A+ Server AS -1114S-WTRT Socket SP3 Single AMD 500W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: AS -1114S-WTRT
• Motherboard: Super H12SSW-NT
• Processor: Socket SP3
  • Single AMD EPYC 7002 Series Processor
  • Support CPU TDP up to 240W
  • Up to 64 Cores
• Chipset: Sysetm on Chip
• Memory: 8 DIMM slots, Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM, DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
• Slots: 2x PCI-E 4.0 x16 (FHHL) slots, 1x PCI-E 4.0 x16 (LP) slot, 2x PCI-E / SATA 3.0 x2 NVMe M.2 slots
• SATA: SATA3 (6Gbps)
• Video: ASPEED AST2500 BMC
• LAN: Dual 10GBase-T LAN with via Broadcom BCM57416
• Drive Bays: 10x 2.5″ Hot-swap SATA3 Drive Bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
• I/O Ports: 2x SATA3 (6 Gbps) ports, 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port, 7x USB 3.0 ports (4 rear, 2 front, 1 Type A), 1x VGA port, 2x SuperDOM(Disk on Module) port
• Form Factor: 1U Rackmount
• Power Supply: 500W Redundant Power Supplies with PMBus
• System Cooling: 4x Counter-rotating 4cm PWM fans, 2x fans for cooling AOC
•  Front Panel:
  • Buttons: Power On/Off, UID button
  • LEDs: Power, HDD Activity, Network Activity, UID
• Color: Black
• Product Dimensions (WxDxH): 17.20 x 23.50 x 1.70 inch/ 437 x 597 x 43 mm
• Gross Weight: 46 lbs / 20.9 kg
