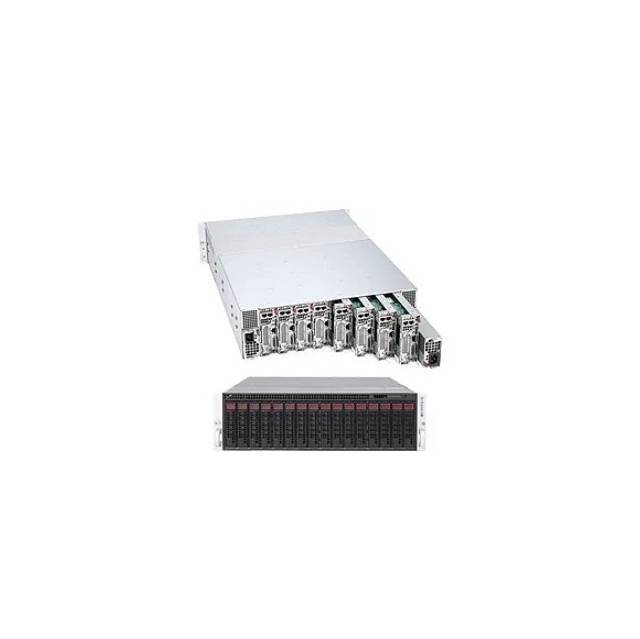

Supermicro SuperServer MicroCloud SPP-5039MS-H8TRF complete system LGA1151 1600W 3U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SPP-5039MS-H8TRF
• Motherboard: Super X11SSD-F
• Processor: LGA1151
  • Supports Intel Xeon E3-1200 v6/v5 Series Processors
  • Supports 7th/6th Generation Intel Core i3/ Pentium/ Celeron Processors
  • Up to 80W TDP
• Chipset Per Node: Intel C236
• Memory Per Node: 4x 288pin DDR4-2400/ 2133 MHz DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots Per Node: 1x PCI-Express 3.0 x8 Slot (Low-profile); 1x Micro-LP for Dual GbE (pre-installed)
• SATA Per Node: 2x SATA3 Ports
• Video Per Node: Aspeed AST2400 BMC Graphics
• LAN Per Node: 2x Intel i350 Gigabit Ethernet Controllers
• Drive Bays Per Node: 2x 3.5″ Hot-swap SATA3 HDDs; up to 16 HDDs total
• Ports per Node: 1x USB 3.0 Type A Port, 2x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 3U Rackmount
• Power Supply: 1600W 80 PLUS Titanium Level Redundant Power Supplies w/ PMBus
• System Cooling: 4x 8cm Heavy duty fans w/ optimal cooling zone
• Front Panel:
  • Buttons: Power On/Off
  • LEDs: Power, Node Status
• Color: Black
• Dimensions (WxDxH): 17.26 x 23.20 x 5.21 inch / 438.4 x 589.0 x 132.5 mm
• Weight: 62.2 lbs / 28.21 kg
• RoHS Compliant
• Complete system include SYS-5039MS-H8TRF/P4X-UPE31285V6-SR373x2pc/MEM-DR416L-CV01-EU26x4pcs/HDS-2TV-MZ7LM240HMHQ005x4pc/MCP-220-93801-0B x4pcs/AOC-STG-I2Tx2pcs/SFT-DCMS-SINGLE x1pc
