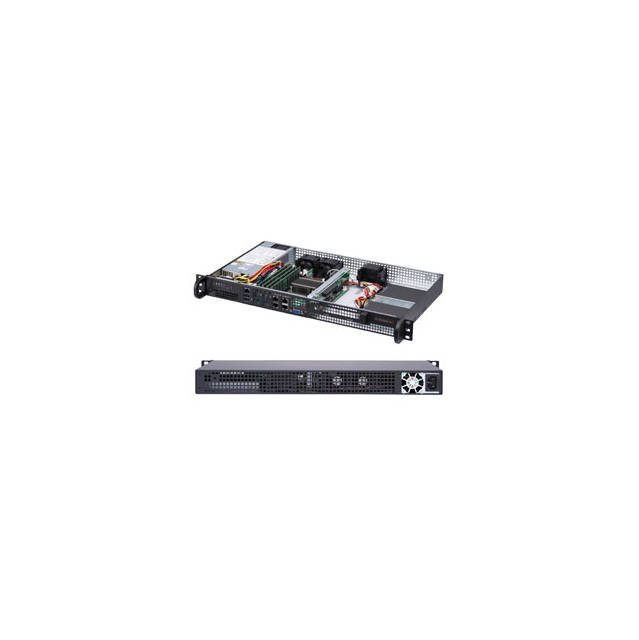

Supermicro SuperServer SYS-5019A-FTN4 FCBGA 1310 200W 1U Rackmount Server Barebone System (Black)

Name: Supermicro SuperServer SYS-5019A-FTN4 FCBGA 1310 200W 1U Rackmount Server Barebone System (Black)
Brand: Supermicro
SKU: KOAH-SYS-5019A-FTN4
Availability: InStock

Original price was: $1,197.77.Current price is: $923.99.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

2 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-SYS-5019A-FTN4 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: SYS-5019A-FTN4
Motherboard: Super A2SDi-8C-HLN4F
Processor: Single socket FCBGA 1310
- Supports Intel Atom C3758 processor
- Support up to 25W TDP
Chipset: N/A
Memory: 4x DDR4-2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Supports up to 256GB DDR4 ECC/REG Memory or up to 64GB DDR4 ECC/non-ECC Unbuffered Memory
Slots: 1x PCI-Express 3.0 x4 Slot , 1x M.2 PCI-E 3.0 x2, M Key 2242/2280
SATA: 4x SATA3 Ports
Video: BMC Integrated ASPEED AST2400 Graphics
LAN: Quad Gigabit Ethernet LAN via Intel C3000 SoC; 1x Realtek RTL8201N PHY (dedicated IPMI)
Drive Bays: 2x 3.5″ or 4x 2.5″ internal hard drive bays (optional)
Ports: 2x USB 2.0 Ports (rear), 1x VGA Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: 1U Rackmount
Power Supply: 200W Gold Certified Low Noise AC-DC Power Supply w/ PFC
System Cooling: 2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan
Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard drive activity, Network Activity, System Overheat, Information LED (temp., status)
Color: Black
Dimensions (WxDxH): 17.2 x 9.8 x 1.7 inch / 437.0 x 249.0 x 43.0 mm
Weight: 8.0 lbs / 3.62 kg
RoHS Compliant
