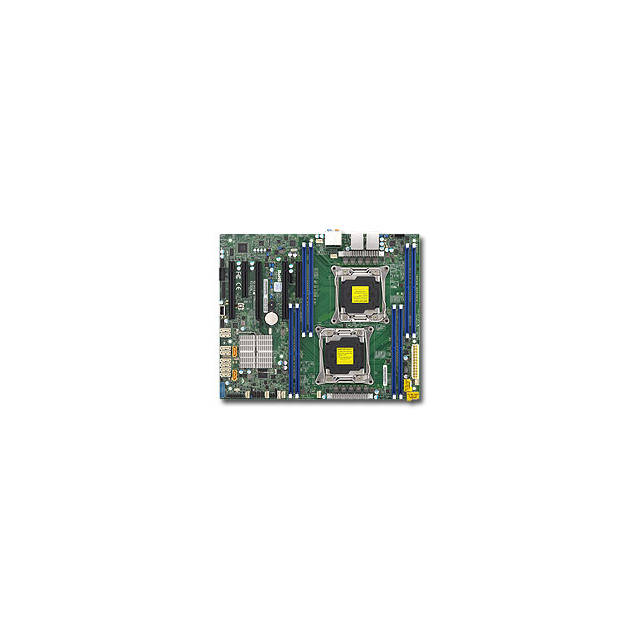

Supermicro X10DAL-I-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ A&2GbE/ ATX Server Motherboard

Name: Supermicro X10DAL-I-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&amp;USB3.0/ A&amp;2GbE/ ATX Server Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X10DAL-I-B
Availability: InStock

Original price was: $540.75.Current price is: $417.15.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

3 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10DAL-I-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10DAL-I-B
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 160W TDP
Chipset: Intel C612 Express
Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x16 Slots (runs at x8), 1x PCI-Express 3.0 x8 Slots (runs at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Audio: Realtek ALC888 7.1-Channel High Definition Audio CODEC w/ S/PDIF Header
LAN: Intel i210 Dual-Port Gigabit Ethernet Controller
Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 3x USB 2.0 Ports (2 via header, 1 Type A), 2x RJ45 LAN Ports
Form Factor: ATX, 12.0 x 10.0 inch / 30.5 x 25.4 cm
RoHS Compliant
