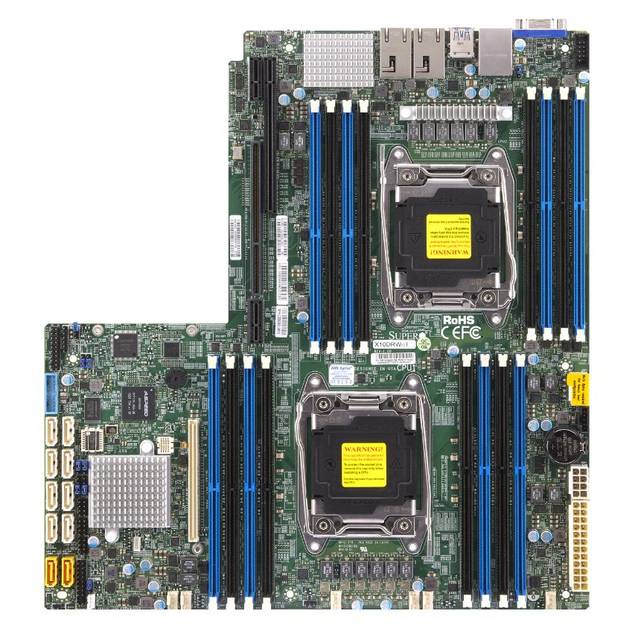

Supermicro X10DRW-IT-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary WIO Server Motherboard

Name: Supermicro X10DRW-IT-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&amp;USB3.0/ V&amp;2GbE/ Proprietary WIO Server Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X10DRW-IT-B
Availability: InStock

Original price was: $912.07.Current price is: $703.59.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

4 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10DRW-IT-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10DRW-IT-B
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 145W TDP
Chipset: Intel C612 Express
Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
Slots: 1x PCI-Express 3.0 x16 Slot (AOM); Riser card support – 1x PCI-Express 3.0 x32 Slots (Left side), 1x PCI-Express 3.0 x16 Slots (Right side)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: ASPEED AST2400 BMC Graphics
LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Proprietary WIO, 12.3 x 13.0 inch / 31.2 x 33.0 cm
RoHS Compliant
