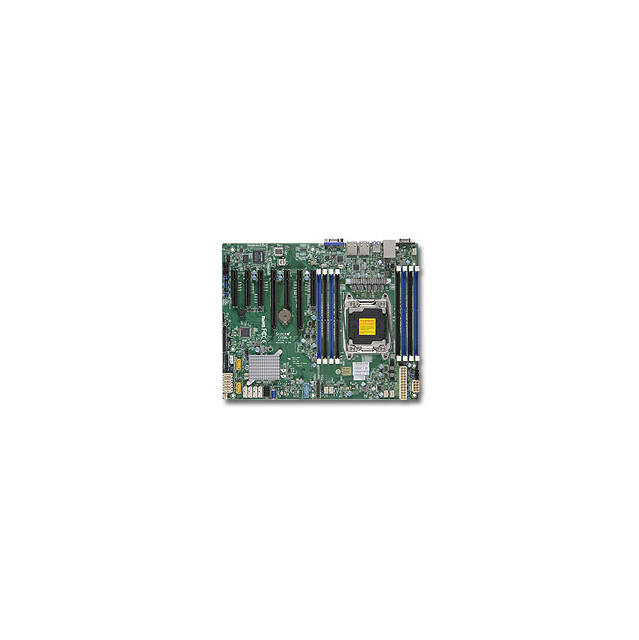

Supermicro X10SRL-F-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

Name: Supermicro X10SRL-F-B LGA2011/ Intel C612/ DDR4/ SATA3&amp;USB3.0/ V&amp;2GbE/ ATX Server Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X10SRL-F-B
Availability: InStock

Original price was: $441.61.Current price is: $340.67.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

3 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10SRL-F-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10SRL-F-B
CPU: LGA2011
- Supports Intel Xeon E5-2600/1600 v3 Processors
- Supports up to 18 Cores
- Supports up to 45MB Cache
- Supports up to 145W TDP
Chipset: Intel C612 Express
Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory
Slots: 2x PCI-Express 3.0 x16 Slot (run at x8), 4x PCI-Express 3.0 x8 Slots (two run at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
Video: Integrated ASPEED AST2400 BMC Graphics
LAN: Intel i210 Dual Port Gigabit Ethernet Controller
Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
RoHS Compliant
