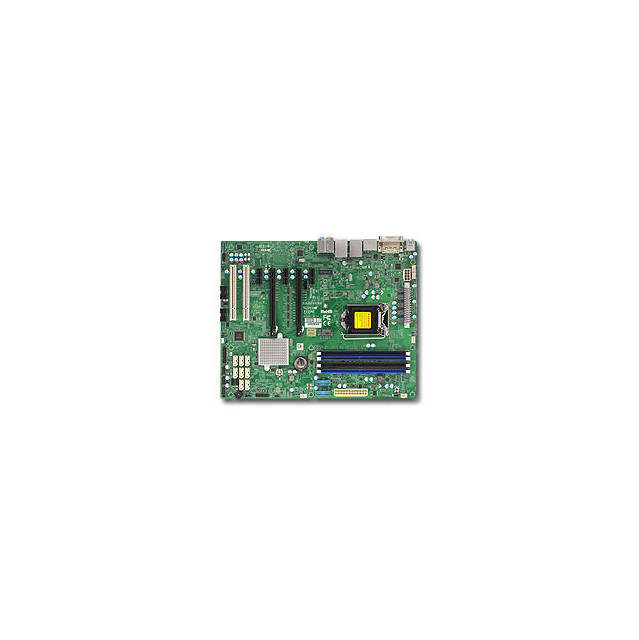

Supermicro X11SAE-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&2GbE/ ATX Motherboard

Name: Supermicro X11SAE-B LGA1151/ Intel C236/ DDR4/ SATA3&amp;USB3.1/ A&amp;2GbE/ ATX Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X11SAE-B
Availability: InStock

Original price was: $369.51.Current price is: $285.05.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

21 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11SAE-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X11SAE-B
CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Support up to 95W TDP
Chipset: Intel C236
Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
Slots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)
SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
Audio: Realtek ALC888S High Definition Audio CODEC
LAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers
Ports: 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
