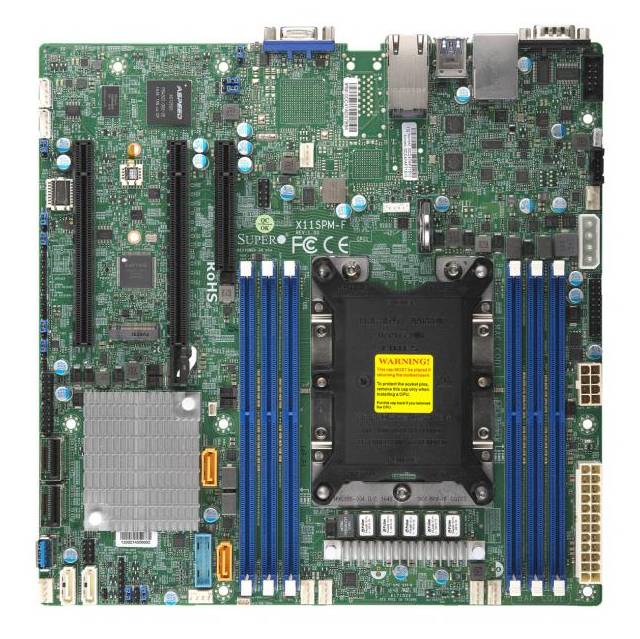

Supermicro X11SPM-F-O LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

Name: Supermicro X11SPM-F-O LGA3647/ Intel C621/ DDR4/ SATA3&amp;USB3.0/ V&amp;2GbE/ MicroATX Server Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X11SPM-F-O
Availability: InStock

Original price was: $602.04.Current price is: $464.43.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

5 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11SPM-F-O Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X11SPM-F-O
CPU: Single Socket P LGA 3647
- Support Intel Xeon Scalable Processors
- CPU TDP support 165W
- Up to 28 cores
Chipset: Intel C621
Memory: 6x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz ECC DIMM Slots, Support up to 768GB ECC 3DS Load Reduced Memory or 384GB ECC Load Reduced Memory or up to 192GB ECC REG Memory
Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8 Slot
SATA: 12x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: Aspeed AST2500 BMC Graphics
LAN: Marvell 88E1512 Dual LAN Gigabit Ethernet Controller
Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports
Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
RoHS Compliant
