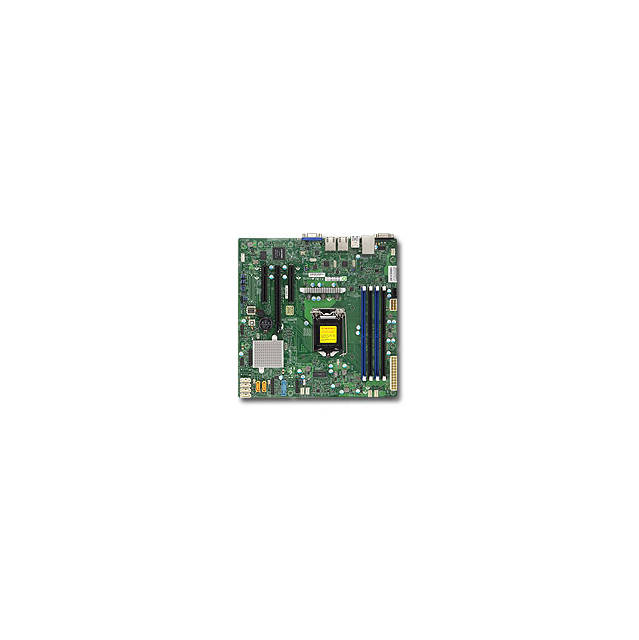

Supermicro X11SSL-F-B LGA1151/ Intel C232/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Motherboard

Name: Supermicro X11SSL-F-B LGA1151/ Intel C232/ DDR4/ SATA3&amp;USB3.0/ V&amp;2GbE/ MicroATX Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X11SSL-F-B
Availability: InStock

Original price was: $310.03.Current price is: $239.17.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

7 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11SSL-F-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X11SSL-F-B
CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
- Support up to 80W TDP
Chipset: Intel C232
Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 2x PCI-Express 3.0 x8 Slot (one runs at x4)
SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: ASPEED AST2400 BMC Graphics
LAN: Dual Intel I210-AT Gigabit Ethernet Controllers
Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
RoHS Compliant
