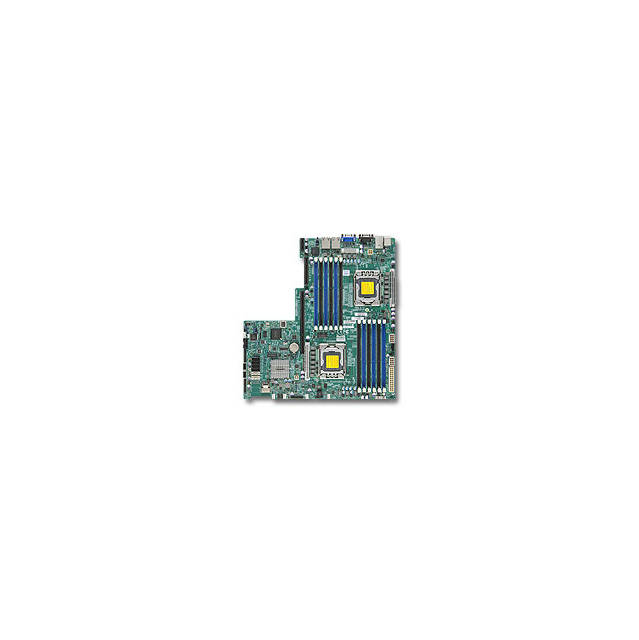

Supermicro X9DBU-IF-B LGA1356/ Intel C602/ DDR3/ SATA3/ V&2GbE/ Proprietary UIO Server Motherboard

Name: Supermicro X9DBU-IF-B LGA1356/ Intel C602/ DDR3/ SATA3/ V&amp;2GbE/ Proprietary UIO Server Motherboard
Brand: Supermicro
SKU: KOAH-MBD-X9DBU-IF-B
Availability: InStock

Original price was: $538.95.Current price is: $415.76.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

11 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X9DBU-IF-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X9DBU-IF-B
CPU: Dual LGA1356; Supports Intel Xeon E5-2400 Processors; Cache up to 20MB; QPI up to 8 GT/s
Chipset: Intel C602
Memory: 12x 240pin DDR3-1600/1333/1066/800 DIMM Slots; Supports up to 384GB ECC Memory or up to 96GB DDR3 ECC/Non-ECC, Un-Buffered Memory
Slots: 1x PCI-Express 3.0 x24 Slot; 1x PCI-Express 2.0 x8 Slot
SATA: 2x SATA3 Ports, 8x SATA2 Ports; Supports RAID 0, 1, 5, 10
Video: Integrated G200 (Nuvoton WPCM450 BMC) Graphics Controller
LAN: Intel i350 Dual Port Gigabit Ethernet Controllers; 1x Realtek RTL8201F PHY (dedicated IPMI)
Ports: 8x USB 2.0 Ports (2 rear, 4 via headers, 2 Type A); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 2x Serial Ports (1 rear,1 via header); 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Proprietary UIO; 12.0 x 13.0 inch / 30.5 x 33.0 cm
RoHS Compliant
