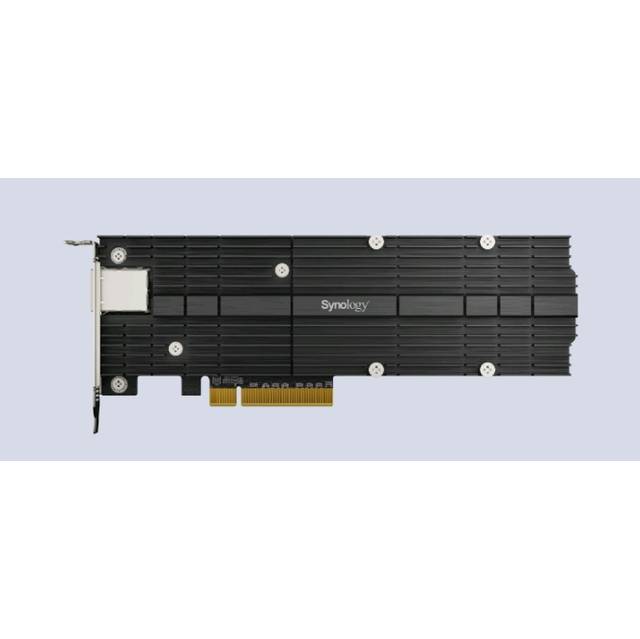

Synology E10M20-T1 M.2 Adapter & Gigabit Ethernet Card

Specifications

• Mfr Part Number: E10M20-T1
• General
  • Host Bus Interface: PCIe 3.0 x8
  • Bracket Height: Low Profile and Full Height
  • Size (Height x Width x Depth): 71.75 mm x 200.05 mm x 17.70 mm
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-5°F to 140°F)
  • Relative Humidity: 5% to 95% RH
  • Warranty: 5 Years
  • Notes: The warranty period starts from the purchase date as stated on your purchase receipt.
• Storage
  • Storage Interface: PCIe NVMe
  • Supported Form Factor: 22110 / 2280
  • Connector Type and Quantity: M-key, 2 Slots
• Network
  • IEEE Specification Compliance:
    • IEEE 802.3an 10Gbps Ethernet
    • IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
    • IEEE 802.3ab Gigabit Ethernet
    • IEEE 802.3u Fast Ethernet
    • IEEE 802.3x Flow Control
  • Data Transfer Rates: 10 Gbps
  • Network Operation Mode: Full Duplex
  • Supported Features:
    •  9 KB Jumbo Frame
    • TCP/UDP/IP Checksum Offloading
    • Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
  • Notes: DSM version requirement: 6.2.3-25426 or later version
• Compatibility
  • Applied Models: NVMe SSD
    •  SA series: SA3600, SA3400
    • 20 series: RS820RP+, RS820+
    • 19 series: DS2419+, DS1819+
    • 18 series: RS2818RP+, DS3018xs, DS1618+
  • Notes: The listed models support Ethernet function when used with E10M20-T1.
