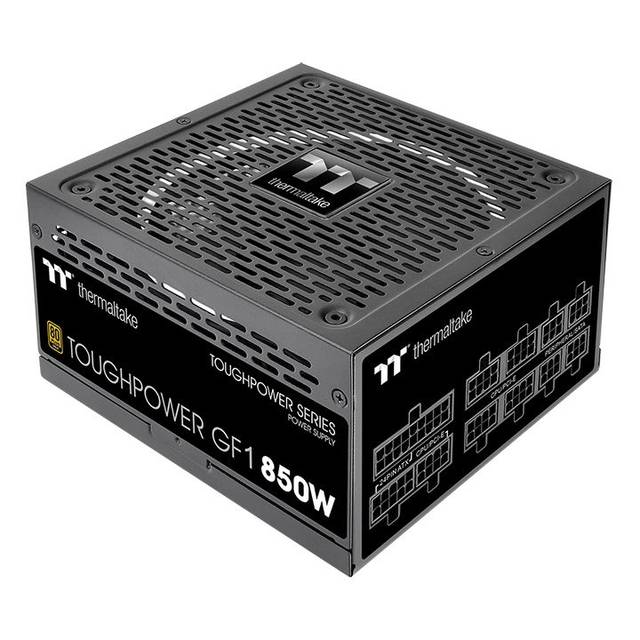

Thermaltake PS-TPD-0850FNFAGU-1 Toughpower GF1/0850W/Fully Modular/Non Light/Full Range/Analog/80 Plus Gold/US/100% JP CAP/All Flat Cables

Specifications

• Mfr Part Number: PS-TPD-0850FNFAGU-1
• MAX. OUTPUT CAPACITY : 850W
• PEAK OUTPUT CAPACITY : 1020W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 16msec at 100% of full load
• INPUT CURRENT : 12A
• INPUT FREQUENCY RANGE : 50Hz – 60Hz
• INPUT VOLTAGE : 100V – 240V~
• OPERATING TEMPERATURE : 0°C to + 50°C
• OPERATING HUMIDITY : 20% to 90%,non-condensing
• STORAGE TEMPERATURE : -20°C to + 70°C
• STORAGE HUMIDITY : 5% to 95%, non-condensing
• COOLING SYSTEM : 14cm hydraulic bearing fan
• EFFICIENCY : Meet 80 PLUS®Gold at 115Vac input.
• MTBF : 120,000 hrs minimum
• SAFETY APPROVAL : CE/cTUVus/TÃœV SÃœD/FCC/BSMI/EAC
• PCI-E 6+2PIN : 6
• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP
