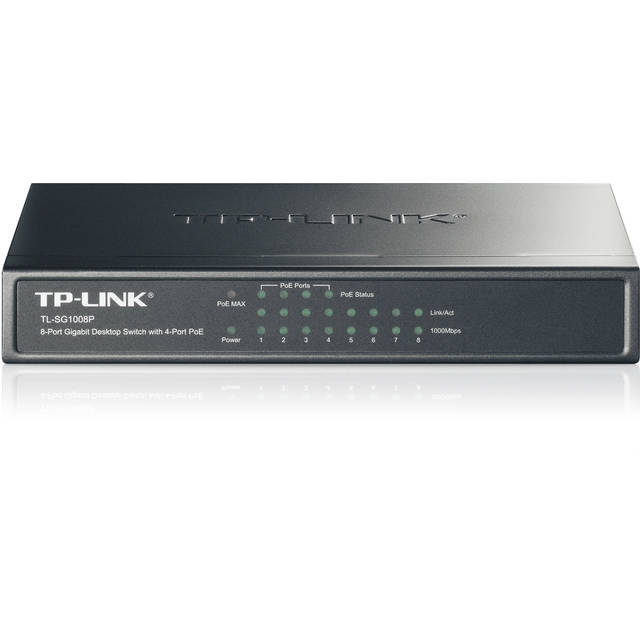

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch w/ 4-Port PoE

Specifications

• Mfr Part Number: TL-SG1008P
• Features:
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 53W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity and speed
  • External power adapter supply
• Hardware Features:
  • Interfaces: 8x 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/ AUTO MDI/ MDIX)
  • Network Media:
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m, EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
  • PoE Ports (RJ45):
    • Standard: 802.3 af compliant
    • PoE Ports: Port1- Port4
    • Power Supply: 53W
  • Backbound Bandwidth: 16Gbps
  • Mac Address Table: 8K
  • External Power Supply: External Power Adapter (Output – 48VDC / 1.25A)
  • Fan Quantity: Fanless
  • Dimensions (WxDxH): 6.7 x 3.9 x 1.1 inch / 171.0 x 98.0 x 27.0 mm
• Software Features:
  • Transmission Method: Store-and-Forward
  • Advanced Functions:
    • Compatible With IEEE 802.3af Compliant PDs
    • Priority Function
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
• Others:
  • Certification: FCC, CE, RoHS
  • Package Contents: TL-SG1008P, Power Adapter, User Guide
  • Consumption: 5.8W (max no PD connected), 58.8W (max with 53w PD connected)
  • Environment:
    • Operating Temperature: 0°C~40°C (32°F~104°F)
    • Storage Temperature: -40°C~70°C (-40°F~158°F)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
