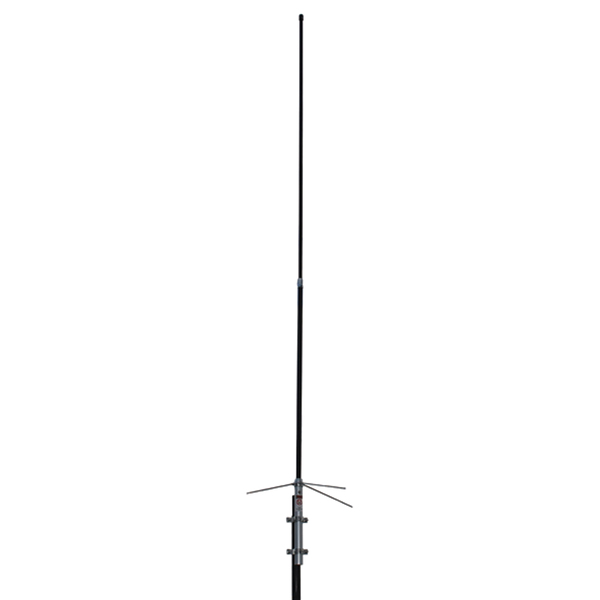

Tram 1480-B 200-Watt Dual-Band 2-Section Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector, 8-Feet 4 Inches Tall (Black)

Brand/Manufacturer: TRAM(R)
UPC Code: 7.27932E+11
SKU: KOAH-1480-B

6DB VHF/8DB UHF DL BD ANT

Specification:

• 200 watts power rating;• 8 ft. 4 in. tall;• Heavy-duty, 2-section fiberglass construction; max wind speed of 110 MPH;• Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design;• 144 MHz to 148 MHz; 4 MHz bandwidth; 6 dBd gain;• 430 MHz to 450 MHz; 20 MHz bandwidth; 8 dBd gain;• 5/8 wave 2 elements and 5/8 wave 4 elements; 20-1/2 in radial length;• Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather;• DC ground construction allow static dissipation for low noise ratio and maximum lightning protection;• Vertical polarization with 50 ohms impedance;• UHF (SO-239) connector;• Mast diameter accepted: 1-3/16 in. to 2-7/16 in. ;• Includes bracket and three 20-1/2 in. radials;• Black;

Estimated Shipping Weight: 4.2
Lenght: 59
Width: 3
Height: 3

Warranty: 90-DAY
