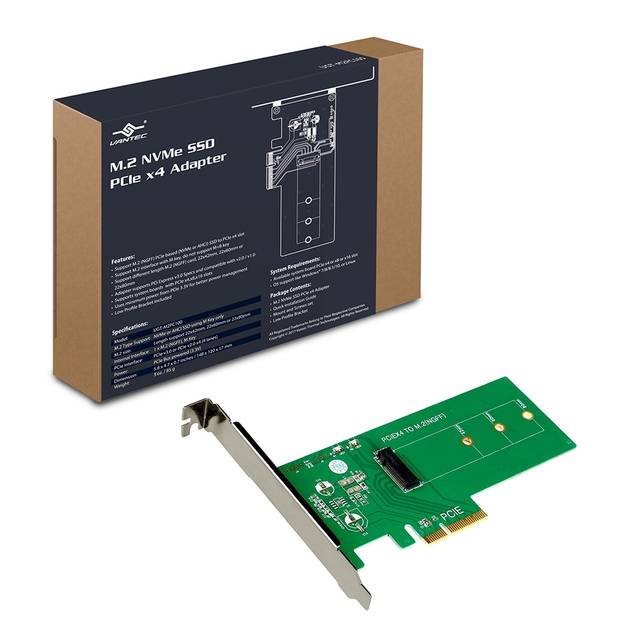

Vantec UGT-M2PC100 M.2 NVMe SSD PCIe x4 ADAPTER W/LOW PROFILE

Specifications

• Mfr Part Number: UGT-M2PC100
• Features:
  • Support M.2 (NGFF) PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
  • Support M.2 interface with M key, do not support M+B key
  • Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm
  • Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
  • Supports system boards  with PCIe x4,x8,x16 slots
  • Uses minimum power from PCIe 3.3V for better power management
  • Low Profile Bracket included
• M.2 Type Support:     NVMe or AHCI SSD using M Key only
• M.2 size:     Length support 22x42mm, 22x60mm or 22x80mm
• Internal Interface:     1 x M.2 (NGFF), M Key
• PCIe Interface:     PCIe v3.0 or PCIe v2.0 x4 (4 lanes)
• Power:     PCIe Bus powered (3.3V)
• Dimensions:     5.8 x 4.7 x 0.7 inches / 148 x 120 x 17 mm
• Weight:     3 oz. / 85 g
• System Requirements:
  • ​For booting, system requires UEFI BIOS with booting support
  • Available system board PCIe x4 or x8 or x16 slot
  • OS support like Windows® 7/8/8.1/10 (Windows 10 preferred), or Linux (Latest Kernel)
• What’s included: M.2 NVMe SSD PCIe x4 Adapter, Quick Installation Guide, Mount and Screws set, Low Profile Bracket
