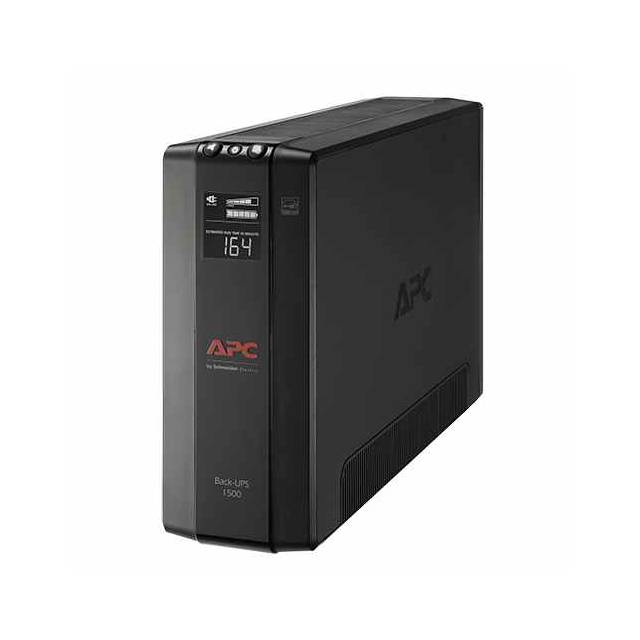

APC Back UPS Pro BX1500M 10-Outlet 900W/1500VA LCD UPS System

Specifications

• Mfr Part Number: BX1500M
• Output:
  • Output Power Capacity: 900Watts / 1.5 kVA
  • Max Configurable Power: 900Watts / 1.5 kVA
  • Nominal Output Voltage: 120 V
  • Output Frequency (sync to mains): 60Hz
  • Topology: Line Interactive
  • Waveform Type: Stepped approximation to a sinewave
  • Output Connections: 5x NEMA 5-15R (selector_surgetitle); 5x NEMA 5-15R (Battery Backup)
  • Transfer Time: 8ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 60Hz +/- 3Hz
  • Input Connections: NEMA 5-15P
  • Cord Length: 1.83 meters
  • Input voltage range for main operations: 88 ~ 139V
  • Number of Power Cords: 1
  • Maximum Input Current: 12.0A
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 16 hours
  • RBC Quantity: 1
  • Extended Run Options: APC-Back-UPS-Pro-BX1500M-Compact-Tower-1500VA-AVR-LCD-120V
• Communications & Management:
  • Interface Port(s): USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; overload continuous tone alarm
• Surge Protection and Filtering:
  • Surge energy rating: 789 Joules
  • Filtering: Full time multi-pole noise filtering; 5% IEEE surge let-through; zero clamping response time; meets UL 1449
  • Data Line Protection: Network line – 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
• Audible noise at 1 meter from surface of unit: 45.0 dBA
• Online Thermal Dissipation: 67.6 BTU/hr
• Regulatory Approvals: FCC Part 15 Class B, UL 1778
• Color: Black
• Dimension (WxDxH): 3.94 x 15.04 x 9.84 inch / 100.0 x 382.0 x 250.0 mm
• Weight: 11.0 kg
