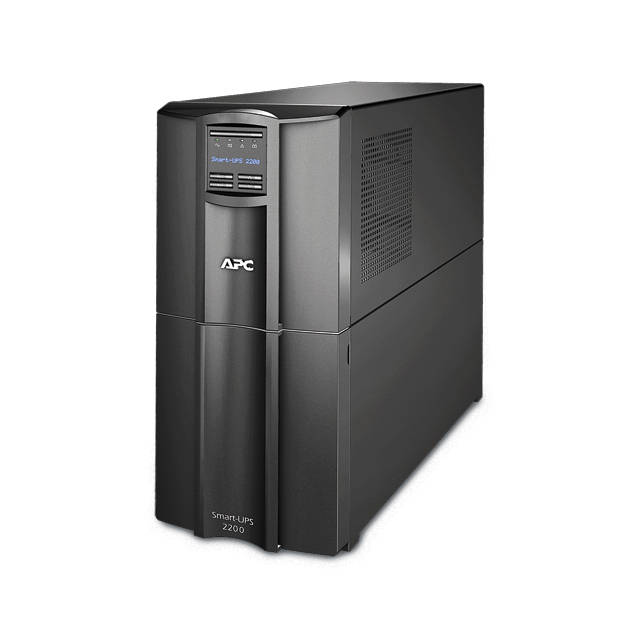

APC Smart-UPS SMT2200C 10-Outlet 1980W/2200VA 120V LCD UPS System w/ SmartConnect

Specifications

• Mfr Part Number: SMT2200C
• Output:
  • Output Power Capacity: 1.92 KWatts / 1.92 kVA
  • Max Configurable Power: 1.98 KWatts / 2.2 kVA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 110, 127
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 2x NEMA 5-20R (Battery Backup); 8x NEMA 5-15R (Battery Backup)
  • Transfer Time: 6ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/-3Hz (auto sensing)
  • Input Connections: NEMA 5-20P
  • Cord Length: 6 feet / 1.83 meters
  • Input voltage range for main operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
  • Other Input Voltages: 110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte – leakproof
  • Typical recharge time: 3 hours
  • Expected Battery Life (years): 3 ~ 5
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: RJ-45 Serial , SmartSlot , USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot Interface Quantity: 1
• Surge Protection and Filtering:
  • Surge energy rating: 530 Joules
  • Filtering: Full time multi-pole noise filtering; 0.3% IEEE surge let-through; zero clamping response time; meets UL 1449
• Audible noise at 1 meter from surface of unit: 45 dBA
• Online Thermal Dissipation: 275 BTU/hr
• Approvals: CSA, ENERGY STAR V1.1 (USA), FCC Part 15 Class A, UL 1778
• Color: Black
• Dimensions (WxDxH): 7.70 x 21.42 x 17.00 inch / 196.0 x 544.0 x 432.0 mm
• Weight: 112.00 lbs / 50.91 kg
