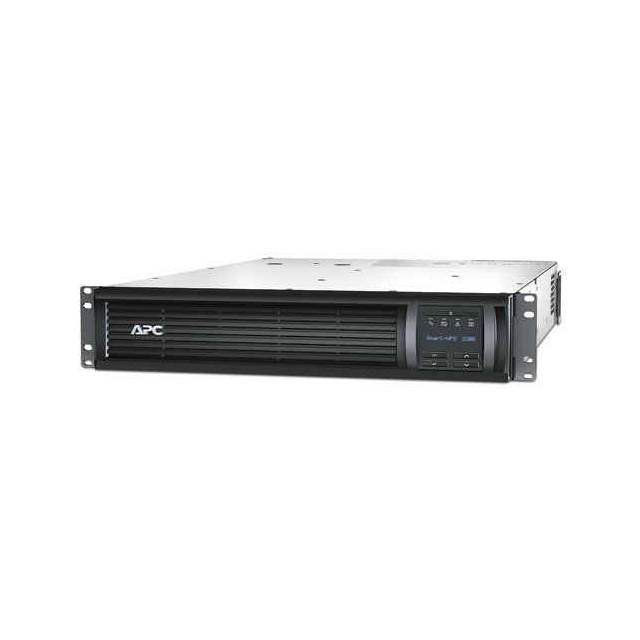

APC Smart-UPS SMT2200RM2UC 8-Outlet 1980W/2200VA 120V 2U Rackmount LCD UPS System w/ SmartConnect

Specifications

• Mfr Part Number: SMT2200RM2UC
• Output:
  • Output Power Capacity: 1920 Watts / 1920 VA
  • Max Configurable Power: 1980 Watts / 2200 VA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 110, 127
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 6x NEMA 5-15R (Battery Backup); 2x NEMA 5-20R (Battery Backup)
  • Transfer Time: 6ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/-3Hz (auto sensing)
  • Input Connections: NEMA 5-20P
  • Cord Length: 8 ft / 2.44 m
  • Input voltage range for main operations: 82 ~ 143 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
  • Other Input Voltages: 110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte – leakproof
  • Typical recharge time: 3 hours
  • Expected Battery Life: 3 – 5
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: RJ-45 Serial , SmartSlot , USB
  • Control panel: LED status display with On Line, On Battery, Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot Interface Quantity: 1
• Surge energy rating: 530 Joules
• Audible noise at 1 meter from surface of unit: 55 dBA
• Online Thermal Dissipation: 215 BTU/hr
• Approvals: CSA, ENERGY STAR V1.1 (USA), FCC Part 15 Class A, UL 1778
• Rack Height: 2U
• Color: Black
• Dimensions(WxDxH): 18.90 x 26.89 x 3.39 inch / 480.0 x 683.0 x 86.0 mm
• Weight: 93.08 lbs / 42.31 kg
