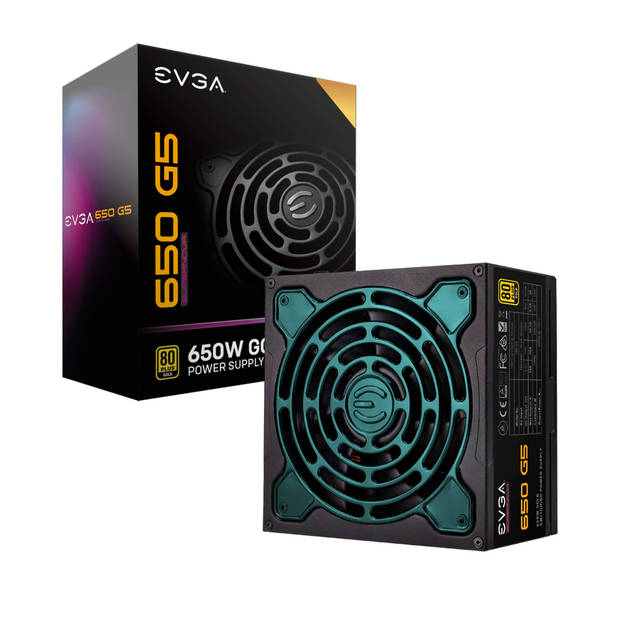

EVGA 220-G5-0650-X1 SuperNOVA 650 G5, 80 Plus Gold 650W, Fully Modular

Specifications

• Mfr Part Number: 220-G5-0650-X1
• Features:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loadst
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • Active Clamp +DC to DC design for efficient operation
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over CurrentProtection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 54.1A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 3x 8pin(6+2)PCI-Express Connector, 6x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 6 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Weight: 6.1 lbs
