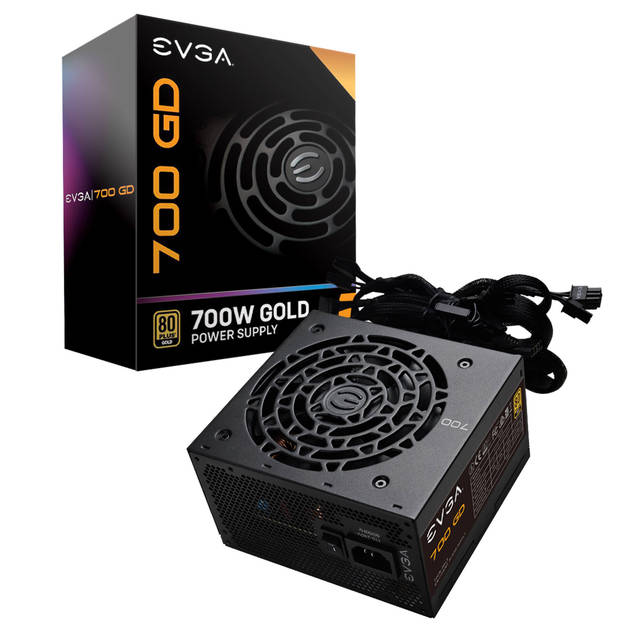

EVGA 700 GD, 80+ GOLD 700W, 5 Year Warranty, Power Supply 100-GD-0700-V1

Name: EVGA 700 GD, 80+ GOLD 700W, 5 Year Warranty, Power Supply 100-GD-0700-V1
Brand: EVGA
SKU: KOAH-100-GD-0700-V1
Availability: InStock

Original price was: $165.83.Current price is: $127.93.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

33 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-100-GD-0700-V1 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: 100-GD-0700-V1
Features:
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Active Power Factor Correction
- Single 12V. Rail
- DC-DC Converter improves 3.3V/5V stability
- Quiet and Intelligent Auto Fan for near-silent operation
- Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 5 Year Warranty and unparalleled EVGA Customer Support
Maximum Power: 700 W
Input:
- Voltage: 110 ~ 240 VAC
- Current: 9.5-4.5 A
- Frequency Range: 50 ~ 60 Hz
Type: ATX12V / EPS12V
MTBF: 100,000 hours
Fan: 120mm Sleeve Bearing
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 58.3A, +5VSB @ 2.5A, -12V @ 0.3A
Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin (6+2), PCI-Express Connector, 6x SATA Connectors, 3x Four-Pin Peripheral Connectors, 1x Floppy Connector
Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
Weight: 5 lbs
