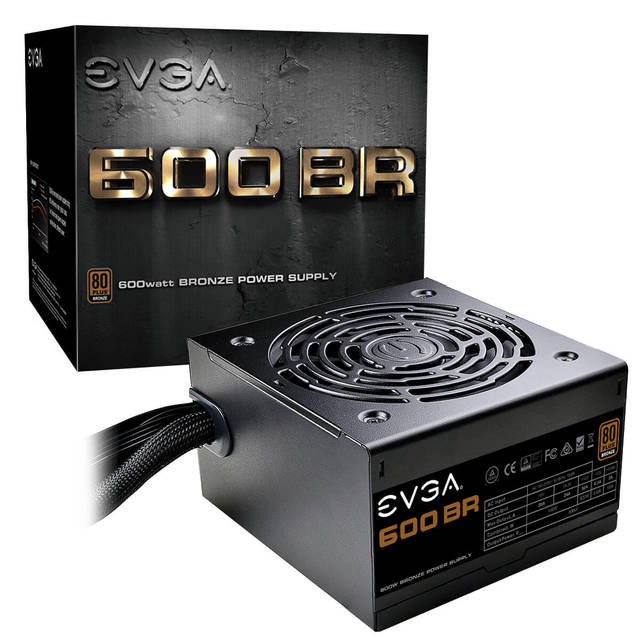

EVGA 600 BR 100-BR-0600-K1 600W 80 PLUS Bronze ATX12V & EPS12V Power Supply

Name: EVGA 600 BR 100-BR-0600-K1 600W 80 PLUS Bronze ATX12V &amp; EPS12V Power Supply
Brand: EVGA
SKU: KOAH-100-BR-0600-K1
Availability: InStock

Original price was: $115.36.Current price is: $88.99.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

29 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-100-BR-0600-K1 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: 100-BR-0600-K1
Features:
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Single 12V. Rail
- Active Power Factor Correction (PFC)
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- DC-DC Converter improves 3.3V/5V stability
- Quiet and Intelligent Auto Fan for near-silent operation
Maximum Power: 600 W
Input:
- Voltage: 100 ~ 240 VAC
- Current: 10/5 A
- Frequency Range: 50 ~ 60 Hz
Type: ATX12V / EPS12V
Efficiency: 85% or Higher Typical
MTBF: 100,000 hours
Fan: 1x 120mm Long Sleeve Bearing
Output: +3.3V @ 24A, +5V @ 20A, +12V @ 50A, +5VSB @ 3A, -12V @ 0.3A
Connectors: 1x 24pin ATX Main Connector, 1x 8(4+4)pin EPS Power Connector, 2x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
Weight: 4.0 lbs
