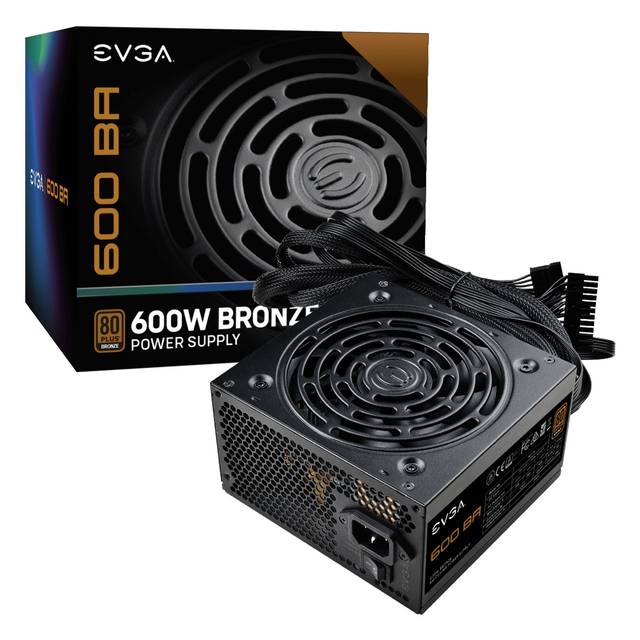

EVGA 100-BA-0600-K1 600 BA, 80+ BRONZE 600W, 3 Year Warranty, Power Supply

Name: EVGA 100-BA-0600-K1 600 BA, 80+ BRONZE 600W, 3 Year Warranty, Power Supply
Brand: EVGA
SKU: KOAH-100-BA-0600-K1
Availability: InStock

Original price was: $122.57.Current price is: $94.55.

Refer to the product’s long description below for detailed specifications, terms and conditions of the item. If item is qualified for free shipping it will show at checkout. Should you have any questions, don’t hesitate to contact support.

15 in stock

Compare

Add to wishlist

Ask a Question

SKU: KOAH-100-BA-0600-K1 Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: 100-BA-0600-K1
Features:
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Single 12V. Rail
- Active Power Factor Correction
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 3 Year Warranty
- DC-DC Converter improves 3.3V/5V stability
- Quiet and Intelligent Auto Fan for near-silent operation
Maximum Power: 600 W
Input:
- Voltage: 100 ~ 240 VAC
- AC Input: 10-5A
- Frequency Range: 50 ~ 60 Hz
Efficiency: 85% Typical
MTBF: 100,000 hours
Fan: 120mm Sleeve Bearing
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 50A, -12V @ 0.3A, +5VSB @ 3A
Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS (CPU) Power Connector, 2x 8pin (6+2) PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
Weight: 4.36 lbs
