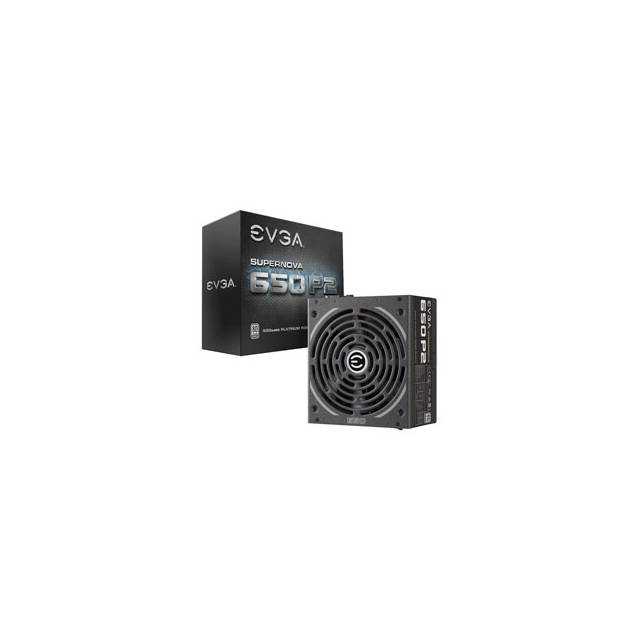

EVGA SuperNOVA 650 P2 220-P2-0650-X1 650W 80 PLUS Platinum ATX12V & EPS12V Power Supply

Specifications

• Mfr Part Number: 220-P2-0650-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54.1A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 2x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 9x SATA Connectors, 6x 4Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 165.0 x 86.0 mm
• Weight: 6.0 lbs
