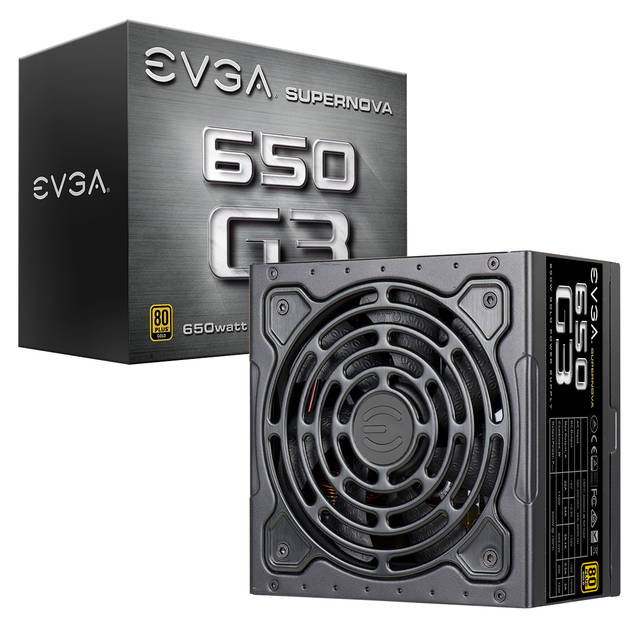

EVGA SuperNOVA 650 G3 220-G3-0650-Y1 650W 80 PLUS Gold ATX12V & EPS12V Power Supply

Specifications

• Mfr Part Number: 220-G3-0650-Y1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Unbeatable 7 Year Warranty and unparalleled EVGA Customer Support.
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 130mm Hydraulic Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 22A, +12V @ 54.1A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connector, 3x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 85.0 mm
• Weight: 7.0 lbs
