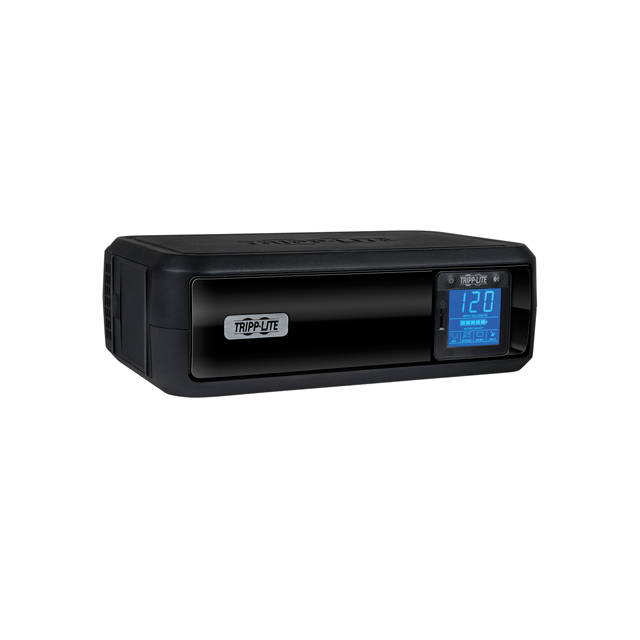

Tripp Lite SMART1000LCD 1000VA/9Min Smart Pro Digital UPS System

Specifications

• Mfr Part Number: SMART1000LCD
• Features:
• 1000VA / 1KVA line interactive tower UPS
• Maintains 120V nominal output over an input range of 89 to 132V
• Workstation / media-center optimized features supported via USB port (HID-PDC compliant), coaxial surge suppression, single line TEL / DSL surge suppression and four surge-only outlets
• Large backlit LCD input voltage display with dimmer switch rotates for upright visibility in shelf or tower placement
• Input: NEMA 5-15P (120V 15A) / Output: 8x NEMA 5-15R (120V)
• OUTPUT:
• Output volt amp capacity: 1000 VA
• Output watt capacity: 500 Watts
• Nominal Output Voltage(s) Supported: 115V, 120V
• Output voltage regulation(Battery Mode): 115V ±5%
• Outlet quantity / type: 8x NEMA 5-15R output receptacles (4 with UPS and surge suppression / 4 with surge suppression only)
• Output AC waveform (AC mode): Sine Wave
• Output AC waveform (battery mode): PWM sine wave
• INPUT:
• Maximum input amps: 12A
• Nominal input voltage(s) supported: 120V AC
• Input connection type: NEMA 5-15P
• Input cord length: 6ft / 1.8m
• Recommended electrical service: 120V 15A
• BATTERY:
• Full load runtime: 3 minutes (1000VA / 500w)
• Half load runtime: 9 minutes (500VA / 250w)
• DC system voltage: 12VDC
• Battery recharge rate: Less than 20 hours from 10% to 90%
• VOLTAGE REGULATION
• Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
• Undervoltage correction: Input voltages between 89 and 104 are boosted by 14%
• LEDS ALARMS & SWITCHES
• LED Indicators: Front panel LCD display
• Front panel LCD display: Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing
• Alarm: Audible alarm indicates power-failure, low-battery and overload status; alarm can be disabled using PowerAlert software
• Alarm cancel operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
• Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
• SURGE / NOISE SUPPRESSION
• AC surge suppression: 480 joules
• AC suppression response time: Instantaneous
• Dataline suppression: 1 line TEL / DSL protection (1 in / 1 out); Coax surge suppression jacks (1 set)
• EMI / RFI AC noise suppression: Yes
• PHYSICAL:
• Unit weight: 15.5 lbs/7 kg
• Unit Dimensions (WxDxH): Tower format: 12 x 7.2 x 3.7 inch / 30.5 x 18.3 x 9.4 cm; Horizontal desktop placement: 3.7 x 7.2 x 12 inch / 9.4 x 18.3 x 30.5 cm
• Material of construction: ABS
• Form factors: Primary – Tower; Secondary – Horizontal desktop placement
• SPECIAL FEATURES
• Green & high efficiency features: Greater than 95% efficiency – GREEN UPS.
• Support Cold Start (startup in battery mode during a power failure)
• Color: Black
• Unit Dimensions(WxDxH):3.7 x 7.2 x 12 inch / 9.4 x 18.5 x 30.5 cm
• Unit Weight: 15.5 lbs / 7 kg
