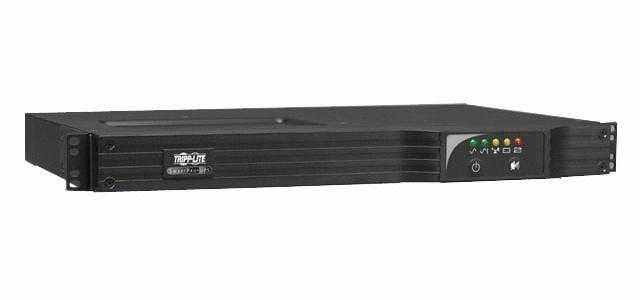

TrippLite SMART500RT1U Smart Pro Rack/Tower UPS System

Specifications

• Mfr Part Number: SMART500RT1U
• System Overview
  • Voltage Compatibility: 120 VAC
  • Frequency Compatibility: 60 Hz
• Output
  • Output Volt Amp Capacity (VA): 500
  • Output Watt Capacity (Watts): 300
  • Output Nominal Voltage: 120VAC
  • Output Voltage Regulation
    • Line Mode: Sine Wave Line Voltage 120V (-15% +13%)
    • Battery Mode: PWM Sine Wave Output Within 10% Of 120V
  • Output Frequency Regulation
    • Line Mode: Passes Line Frequency Of 60Hz +/-10%
    • Battery Mode: Inverter Output Regulated To 60Hz +/-1Hz
  • Outlet Quantity/Type: 7 NEMA 5-15R (6 UPS Supported, 1 Surge-only)
  • Overload Protection: Via 15A Input Breaker
• Input
  • Maximum Input Amps: 5.6A
  • Input Connection Type: NEMA 5-15P
  • Input Cord Length: 10 ft., 14 Gauge, Black
  • Recommended Electrical Service: 15A 120V
• Bttery
  • Full Load Runtime: 5 Minutes (500VA)
  • Half Load Runtime: 17 Minutes (250VA)
  • DC System Voltage: 12 VDC
  • Typical Battery Lifespan: 3-6 Years, Depending On Usage
  • Battery Recharge Rate: 2-4 Hours To 90%
• Brownout Correction: Input Voltages Between 90 And 108 Are Boosted By 14%
• Surge/Noise Suppression
  • AC Surge Suppression: 1800 Joules
  • AC Suppression Response Time: Instantaneous
  • EMI/RFI AC Noise Suppression: Yes
• Physical
  • Unit Weight (lbs): 18.8
  • Unit Weight (kg): 8.5
  • Unit Dimensions (HWD/in): 1.75 x 17.5 x 11.75
  • Unit Dimensions (HWD/cm): 4.45 x 44.5 x 29.8
  • Material Of Construction: Steel
  • Form Factors Supported: 1U Rackmount And Upright Tower Compatible
  • Battery Access: Battery Access Door Allows Hot Swap Battery Replacement Without Powering Connected Equipment Off
• Environmental
  • Line Mode BTU/hr. (Max.): 65.1
  • Battery Mode BTU/hr. (Max.): 437.1
• Line/Battery Transfer
  • Transfer Time From Line Power To Battery Mode: 2-4 Milliseconds
  • Low Voltage Transfer To Battery Power: 90V (Resets To Line Power As Line Voltage Increases To 94V Or Higher)
  • High Voltage Transfer To Battery Power: 136V (Resets To Line Power As Line Voltage Decreases To 132 Or Lower)
• Certifications: UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico)
• Special Features
  • EPO Port: Includes RJ11 EPO (Emergency Power Off) Port And Cable
  • Appearance: Attractive All-black Color Scheme
